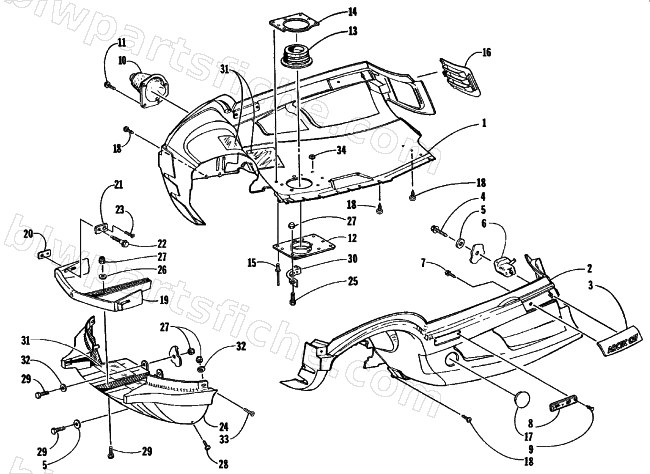

BELLY PAN AND FRONT BUMPER ASSEMBLY
1998 ZR 500 (2ND RUN)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-752 | BELLY PAN, RH - ROUTED (GRN) | 1 | $187.95 | |
| 2 | 0716-753 | BELLY PAN, LH - ROUTED (GRN) | 1 | $181.95 | |
| 3 | 1606-065 | BUMPER, BELLYPAN-LH | 1 | $29.95 | |
| 4 | 0623-703 | SCREW,SELF TAP-HWH .25 X 2.5" Z&Y | 1 | $0.95 | |
| 5 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 6 | 1606-108 | SUPPORT,BELLYPAN-RH | 1 | $24.77 | |
| 6 | 1606-109 | SUPPORT,BELLYPAN-LH | 1 | $26.95 | |
| 7 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 10 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 11 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 12 | 0612-760 | RING,EXHAUST OUTLET-LOWER | 1 | $24.95 | |
| 14 | 0712-891 | RING,EXHAUST OUTLET-UPPER-PTD BLK | 1 | $10.95 | |
| 15 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 16 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 16 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 17 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 18 | 0623-700 | SCREW,SELF TAP-TSTRH #10-12X3/4 TP A Z&Y | 1 | $10.95 | |
| 19 | 1606-144 | BUMPER, FRONT-ZR | 1 | $124.95 | |
| 21 | 0607-524 | PLATE,BACKING-HOOD HINGE | 1 | $19.25 | |
| 22 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 23 | 0623-689 | SCREW,MACH-HSFH 10-24X1.25 Z&Y | 1 | $2.06 | |
| 24 | 1606-153 | NOSE, GREEN - BELLY PAN | 1 | $140.95 | |
| 25 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 26 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 29 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 30 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 31 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 32 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 33 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 34 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
