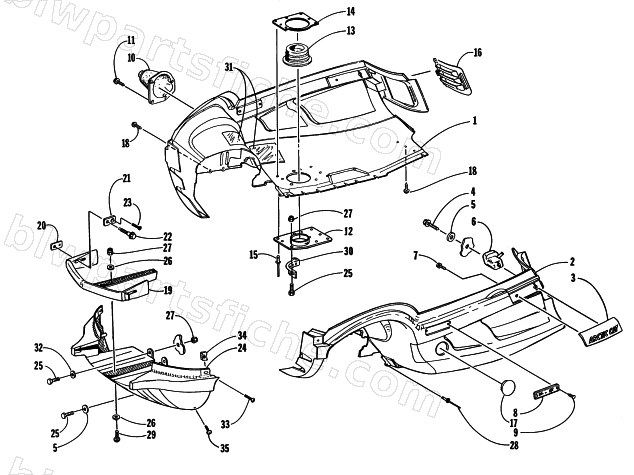

1998 Arctic Cat ZR 500 (JANUARY) — BELLY PAN AND FRONT BUMPER ASSEMBLY
1998 ZR 500 (JANUARY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-728 | BELLYPAN,RH-ROUTED (BLK) | 1 | $181.95 | |
| 2 | 0716-729 | BELLYPAN,LH-ROUTED (97ZRH) | 1 | $206.95 | |
| 3 | 1606-065 | BUMPER, BELLYPAN-LH | 1 | $29.95 | |
| 4 | 0623-703 | SCREW,SELF TAP-HWH .25 X 2.5" Z&Y | 1 | $0.95 | |
| 5 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 6 | 1606-108 | SUPPORT,BELLYPAN-RH | 1 | $24.77 | |
| 6 | 1606-109 | SUPPORT,BELLYPAN-LH | 1 | $26.95 | |
| 7 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 10 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 11 | 0623-608 | SCREW,SELF TAP-TTH 10-24X1.0 TYPE F | 1 | $0.25 | |
| 12 | 0612-760 | RING,EXHAUST OUTLET-LOWER | 1 | $24.95 | |
| 14 | 0712-891 | RING,EXHAUST OUTLET-UPPER-PTD BLK | 1 | $10.95 | |
| 15 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 16 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 16 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 17 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 18 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 19 | 1606-144 | BUMPER, FRONT-ZR | 1 | $124.95 | |
| 20 | 1606-120 | PLATE, BACKING - HOOD HINGE | 1 | $82.95 | |
| 21 | 0607-524 | PLATE,BACKING-HOOD HINGE | 1 | $19.25 | |
| 22 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 23 | 0623-689 | SCREW,MACH-HSFH 10-24X1.25 Z&Y | 1 | $2.06 | |
| 25 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 26 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 30 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 32 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 34 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 35 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 |
