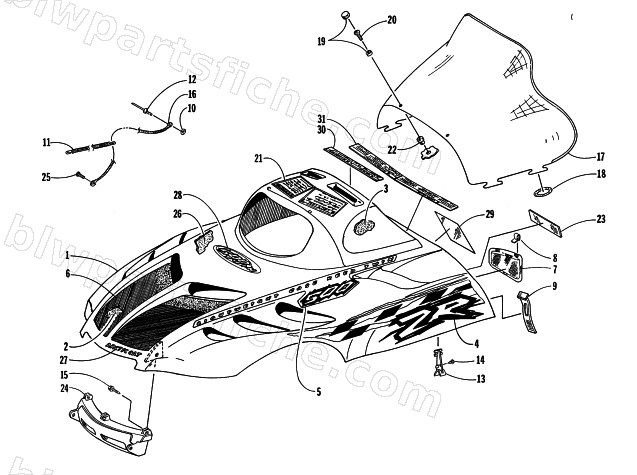

1998 Arctic Cat ZR 500 (JANUARY) — HOOD AND WINDSHIELD ASSEMBLY
1998 ZR 500 (JANUARY)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-571 | HOOD- W/O DECAL | 1 | $1,896.95 | |
| 1 | 0718-572 | HOOD W/DECALS-ZR 500 | 1 | $1,854.95 | |
| 2 | 2611-973 | DECAL,CAUTION-FUEL-ENG/FR | 1 | $160.95 | |
| 3 | 0717-100 | FOAM,HOOD-UPPER RH | 1 | $5.95 | |
| 3 | 0717-101 | FOAM,HOOD-UPPER LH | 1 | $5.95 | |
| 4 | 2611-888 | DECAL,HOOD-LOWER-RH | 1 | $78.95 | |
| 4 | 2611-889 | DECAL,HOOD-LOWER-LH | 1 | $78.95 | |
| 5 | 2611-904 | DECAL,HOOD-UPPER-RH | 1 | $45.95 | |
| 5 | 2611-905 | DECAL,HOOD-UPPER-LH | 1 | $45.95 | |
| 6 | 2611-894 | DECAL,HOOD-FRONT VENT-RH | 1 | $165.95 | |
| 6 | 2611-895 | DECAL,HOOD-FRONT VENT-LH | 1 | $27.95 | |
| 7 | 1606-214 | SCREEN,HOOD-REAR | 1 | $32.95 | |
| 8 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 10 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 11 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 1606-049 | GUIDE,HOOD | 1 | $3.95 | |
| 14 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 15 | 0623-684 | SCREW,SELF TAP-HWH #12X1-HILO-Z&Y | 1 | $0.95 | |
| 16 | 0606-121 | HOOD CABLE - 34" | 1 | $15.11 | |
| 17 | 1606-074 | WINDSHIELD, FORMED | 1 | $113.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 2611-971 | DECAL,WARNING-GENERAL-HOOD | 1 | $134.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 2611-769 | DECAL,WARNING-SEATING CAP.-GLOSSY | 1 | $16.95 | |
| 24 | 1606-047 | HINGE,HOOD | 1 | $57.95 | |
| 26 | 0717-102 | FOAM,HOOD-MIDDLE | 1 | $33.95 | |
| 27 | 2611-896 | DECAL,HOOD-"ARCTIC CAT" | 1 | $100.95 | |
| 28 | 2611-875 | DECAL,HOOD-CENTER | 1 | $73.95 | |
| 29 | 2611-970 | DECAL,WARNING-BRAKE/ENGINE | 1 | $30.95 | |
| 31 | 2611-972 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $61.95 |
