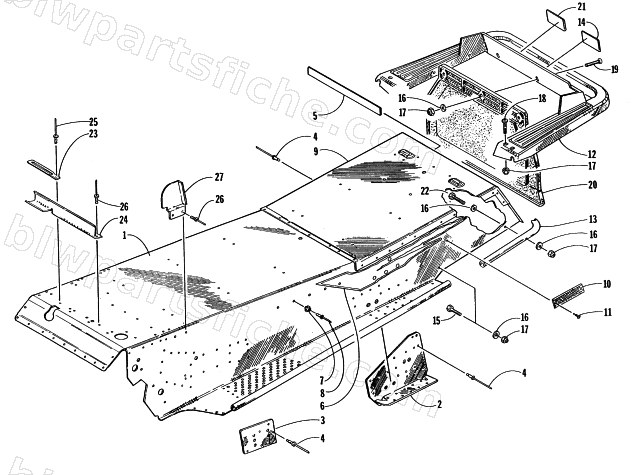

1998 Arctic Cat ZR 500 (JANUARY) — TUNNEL AND REAR BUMPER
1998 ZR 500 (JANUARY)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-573 | TUNNEL - ASSY | 1 | $1,223.95 | |
| 2 | 2706-780 | BRKT,SUSP. RH-PTD BLK | 1 | $50.95 | |
| 2 | 2706-781 | BRKT,SUSP. LH-PTD BLK | 1 | $45.95 | |
| 3 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 5 | 2611-940 | DECAL,FASTRACK/ETT | 1 | $81.95 | |
| 6 | 2611-776 | DECAL,TUNNEL-RH | 1 | $45.95 | |
| 6 | 2611-777 | DECAL,TUNNEL-LH | 1 | $42.95 | |
| 7 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 8 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 9 | 0616-728 | PLATE,END-REAR TUNNEL | 1 | $256.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0616-730 | BUMPER,REAR-'ETT' | 1 | $172.95 | |
| 13 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 21 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 22 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 23 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 24 | 0607-488 | BRCKT, MAIN HARNESS PROTECTOR | 1 | $16.49 | |
| 25 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 26 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 27 | 0670-737 | GUARD,AIR SILENCER | 1 | $11.95 |
