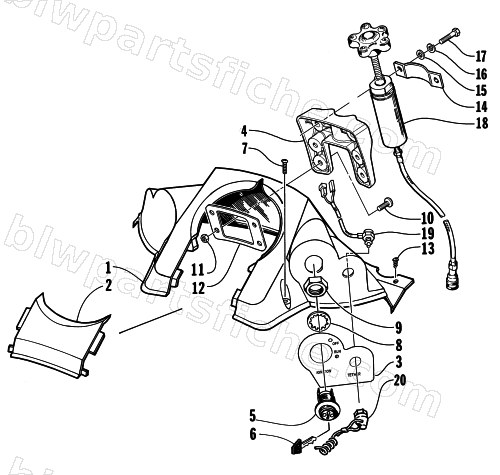

1998 Arctic Cat ZR 600 EFI LE XC — CONSOLE AND SWITCH ASSEMBLY
1998 ZR 600 EFI LE XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-367 | CONSOLE-EFI (W/ TETHER) | 1 | $41.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 3 | 2611-842 | DECAL,CONSOLE-RH (KEY & TETHER) | 1 | $20.95 | |
| 4 | 1606-364 | BRKT,MTG-EASY ADJ. RESERVOIR ('98 440 ZR | 1 | $52.95 | |
| 5 | 0609-256 | SWITCH,IGNITION-NORM. OPEN | 1 | $71.95 | |
| 6 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 7 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 8 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 9 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 10 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 1606-365 | PLATE,BACKING-EASY ADJ. MTG BRKT ('98 44 | 1 | $12.95 | |
| 13 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 14 | 1604-432 | BRKT,RETAINER-EASY ADJ RESERVOIR | 1 | $30.95 | |
| 15 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 16 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 17 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 18 | 1604-191 | ADJUSTER,FRONT ARM-EASY ADJUST | 1 | $408.95 | |
| 19 | 0630-077 | SWITCH,TETHER-N.O. ASSY. | 1 | $70.95 |
