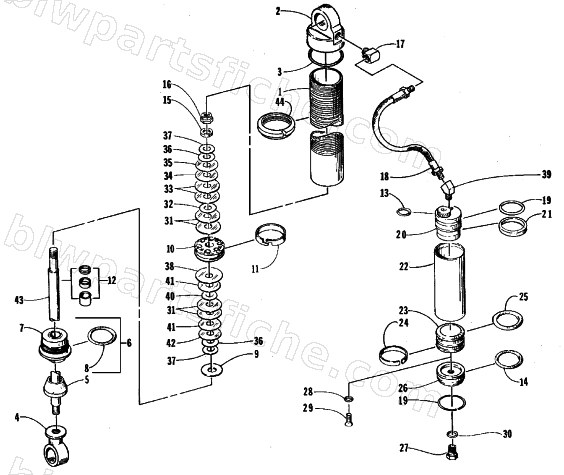

1998 Arctic Cat ZR 600 EFI LE XC — FRONT SUSPENSION SHOCK ABSORBER
1998 ZR 600 EFI LE XC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1603-341 | SHOCK,SKI-CLICKER (ZR 600 B) | 1 | $1,140.95 | |
| 0 | 1639-771 | REBUILD KIT, A/C SHOCK ("CLICKER" SHOCK) | 1 | $74.95 | |
| 1 | 1603-359 | BODY,SHOCK-7.330 TLG (FOX),GROOVED | 1 | $140.95 | |
| 2 | 0603-919 | END CAP,SHOCK-(SKI W/ REZY) | 1 | $143.95 | |
| 3 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 4 | 0603-920 | EYELET,1.012 x 1.637 x 2.26 | 1 | $98.95 | |
| 5 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 6 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 8 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 9 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 10 | 0604-741 | PISTON, .093 ORFICE | 1 | $121.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-280 | SPACER,SHOCK .125 | 1 | $10.97 | |
| 12 | 0603-281 | SPACER,SHOCK .500 | 1 | $32.95 | |
| 12 | 0603-282 | SPACER,SHOCK 1.000 | 1 | $43.95 | |
| 13 | 0603-975 | RING, .070 X .801 | 1 | $0.65 | |
| 14 | 0603-968 | O-RING - .139 X 1.484 | 1 | $2.75 | |
| 15 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 16 | 0603-921 | NUT, CAP | 1 | $16.49 | |
| 17 | 0603-297 | FITTING,ELBOW-FOX | 1 | $8.95 | |
| 19 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 20 | 2603-378 | DAMPING ADJUST,COMPRESSION-ASSY-CLR | 1 | $215.95 | |
| 21 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 22 | 0603-672 | BODY, RESERVIOR-4" ALUM. (BLACK) | 1 | $371.95 | |
| 23 | 0603-673 | PISTON, RES-1.834 BORE(FOX) | 1 | $113.95 | |
| 24 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 25 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 26 | 0603-676 | ENDCAP, RESERVIOR | 1 | $106.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 29 | 0703-724 | SCREW,RELIEF-W/ O-RING-ASSY | 1 | $0.65 | |
| 31 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 32 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 33 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 34 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 35 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 36 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 37 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 38 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 39 | 0604-998 | ELBOW,45 DEG. | 1 | $57.95 | |
| 40 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 41 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 42 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 43 | 0603-961 | ROD, SHOCK - 8.500 (RB 2603-320) | 1 | $53.95 | |
| 44 | 0603-805 | ADJUSTER,SPRING-SHOCK (FOX)-THREADED BOD | 1 | $35.95 |
