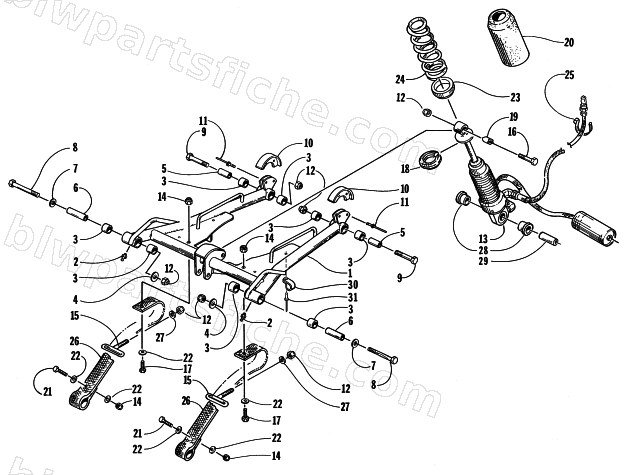

1998 Arctic Cat ZR 600 EFI LE XC — REAR SUSPENSION FRONT ARM ASSEMBLY
1998 ZR 600 EFI LE XC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-345 | ARM,FRONT-FABR-GREEN | 1 | $418.95 | |
| 1 | 0704-358 | ARM, FRONT-FABR-BLK (SPLIT) | 1 | $536.95 | |
| 2 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 3 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 4 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 7 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 8 | 8002-230 | SCREW,CAP-HH 3/8-16 X2.75 G5 Z&Y | 1 | $1.23 | |
| 9 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 10 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 11 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 12 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 13 | 1604-385 | SHOCK,FRONT ARM-EASY ADJ. ('97 440 ZR) | 1 | $1,483.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0704-256 | ADJUSTER,FRT.ARM-PTD BLK | 1 | $16.49 | |
| 17 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 18 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 19 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 20 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 23 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 1604-193 | STRAP,LIMITER-1.50 WIDE | 1 | $22.01 | |
| 27 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 28 | 1604-287 | BUSHING,SHOCK-.160" FLANGE | 1 | $2.88 | |
| 29 | 1604-289 | SLEEVE,EYELET-OUTER-(1.020") | 1 | $13.73 | |
| 30 | 0623-342 | CLAMP,TUBE | 1 | $5.51 | |
| 31 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
