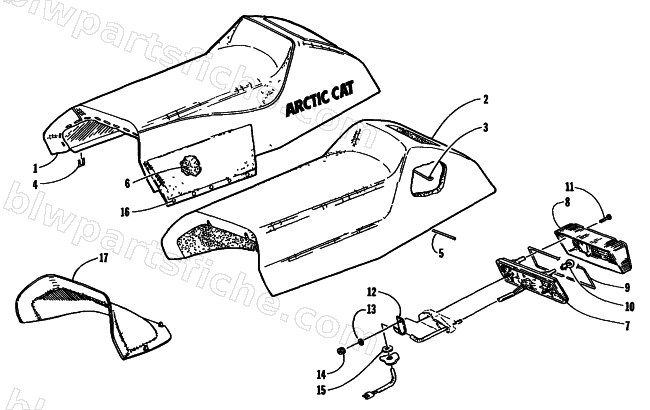

1998 Arctic Cat ZR 600 EFI LE XC — SEAT AND TAILLIGHT ASSEMBLY
1998 ZR 600 EFI LE XC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-633 | SEAT-ASSY 98 ZR 600 EFI | 1 | $728.95 | |
| 0 | 0718-651 | SEAT-ASSY, 98ZR600/EFI/LE-BLK | 1 | $728.95 | |
| 1 | 0716-730 | COVER, SEAT-ASSY | 1 | $450.95 | |
| 1 | 0716-866 | COVER, SEAT W/DECAL 98ZR/EFI/LE-BLK | 1 | $522.95 | |
| 2 | 0716-536 | FOAM.SEAT CUSHION | 1 | $189.95 | |
| 3 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 0617-274 | FOAM,PAD-TUNNEL ('98 ZR) | 1 | $11.95 | |
| 7 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 8 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 9 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 12 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 16 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 17 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 |
