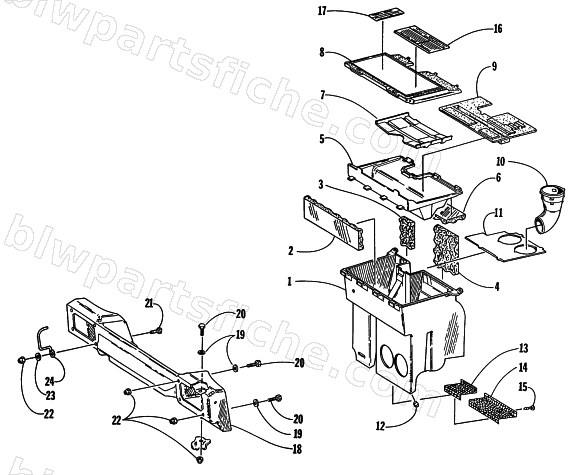

1998 Arctic Cat ZR 600 (JANUARY) — AIR SILENCER ASSEMBLY
1998 ZR 600 (JANUARY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-347 | AIR SILENCER - ASSY, '99 P/S 600 | 1 | $159.95 | |
| 2 | 0617-254 | FOAM,AIR SILENCER-FRONT | 1 | $5.95 | |
| 5 | 0616-972 | TOOL BOX | 1 | $34.95 | |
| 6 | 0617-251 | FOAM,AIR SILENCER-TOP LID | 1 | $8.95 | |
| 7 | 0670-601 | TRAY, MANUAL-TOOL BOX | 1 | $40.95 | |
| 8 | 0616-973 | COVER, TOOL BOX | 1 | $26.95 | |
| 9 | 0617-241 | FOAM, TOOL BOX-UPPER | 1 | $53.95 | |
| 10 | 0670-617 | FUNNEL, AIR SILENCER | 1 | $53.95 | |
| 11 | 0670-709 | BAFFLE, AIR SILENCER | 1 | $5.95 | |
| 12 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 13 | 0670-661 | SCREEN,AIR SILENCER-MAG | 1 | $52.95 | |
| 14 | 0670-646 | SCREEN, AIR SILENCER | 1 | $39.95 | |
| 15 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 16 | 2611-736 | DECAL,JET CHART-ZR600 | 1 | $13.95 | |
| 17 | 2611-765 | DECAL, TOOLBOX | 1 | $8.95 | |
| 18 | 0670-644 | PLENUM, AIR SILENCER | 1 | $222.95 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 24 | 0645-235 | BRKT,HARNESS-EFI | 1 | $10.95 |
