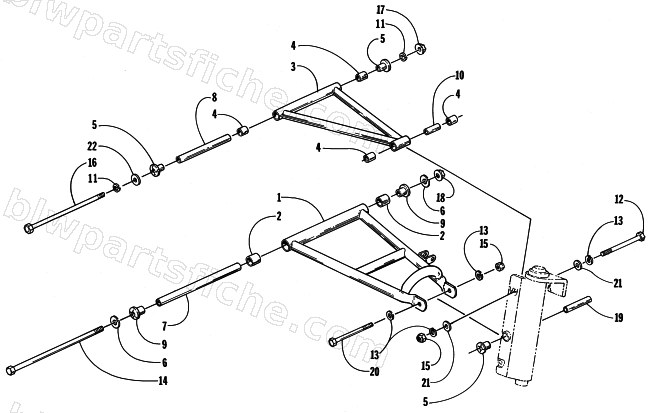

A-ARM ASSEMBLY
1998 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-290 | ARM,FRT.-LOWER-FAB-RH (BLK.) | 1 | $219.95 | |
| 1 | 0703-291 | ARM,FRT.-LOWER-FAB-LH (BLK.) | 1 | $219.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-407 | A-ARM,UPPER-FAB. (BLK.) | 1 | $152.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 6 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 7 | 0603-517 | TUBE,AXLE-LOWER PIVOT | 1 | $41.95 | |
| 8 | 0603-516 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $28.95 | |
| 9 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 10 | 0603-864 | TUBE, AXLE | 1 | $17.87 | |
| 11 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 12 | 8013-233 | SCREW,CAP-HH 3/8-16 X 3.50 GR8 Z&Y | 1 | $3.16 | |
| 13 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 17 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 | |
| 18 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 | |
| 19 | 0603-639 | TUBE,AXLE-LOWER ARM | 1 | $5.09 | |
| 20 | 0623-414 | SCREW,CAP HH 3/8-16 X 4.75 GR8 Z&Y | 1 | $4.68 | |
| 21 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 22 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 |
