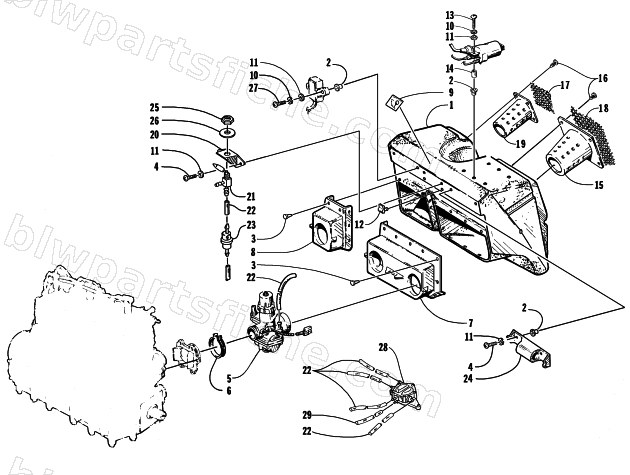

1998 Arctic Cat ZRT 800 — CARBURETOR, AIR SILENCER, AND FUEL PUMP ASSEMBLY
1998 ZRT 800
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-225 | SILENCER, AIR-W/INSERTS(ZRT 800) | 1 | $216.95 | |
| 2 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 3 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 4 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 5 | 0770-254 | CARB,VM38-303 W/CARB SW N.O. | 1 | $501.95 | |
| 6 | 3004-212 | CLAMP, INTAKE,M52 | 1 | $27.95 | |
| 8 | 1670-393 | BOOT, AIR SILENCER | 1 | $74.95 | |
| 9 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 10 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 12 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 14 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 15 | 0670-203 | FUNNEL,AIR SILENCER 3.5 | 1 | $26.95 | |
| 17 | 0670-208 | SCREEN,AIR INTAKE | 1 | $16.49 | |
| 18 | 0670-207 | SCREEN,AIR INTAKE | 1 | $27.95 | |
| 19 | 0670-205 | FUNNEL,AIR SILENCER 2 | 1 | $26.95 | |
| 20 | 0670-284 | BRACKET,MOUNTING-FUEL SHUT-OFF VALVE | 1 | $10.97 | |
| 21 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 22 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 22 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 23 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 24 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 25 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 26 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 27 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 28 | 0670-785 | PUMP,FUEL (DF 62-712) | 1 | $133.95 | |
| 29 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 |
