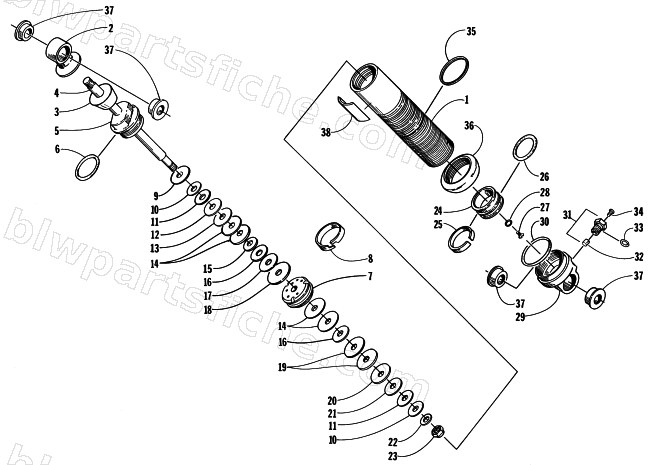

1998 Arctic Cat ZRT 800 — FRONT SUSPENSION SHOCK ABSORBER
1998 ZRT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1603-176 | SHOCK,SKI-FOX ('98 ZRT'S & THC'S) | 1 | $618.95 | |
| 1 | 0603-732 | BODY,SHOCK-6.950" (4.50" OF THREADS) | 1 | $178.95 | |
| 2 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 3 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 4 | 1603-188 | ROD,SHOCK | 1 | $174.95 | |
| 5 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 6 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 7 | 0604-741 | PISTON, .093 ORFICE | 1 | $121.95 | |
| 8 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 11 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 12 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 13 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 14 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 15 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 16 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 17 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 18 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 19 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 20 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 21 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 22 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 23 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 24 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 25 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 26 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 27 | 0703-340 | SCREW,RELIEF-WITH O-RING(RB 0703-724) | 1 | $5.95 | |
| 28 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 29 | 1604-578 | ENDCAP, SHOCK - ASSY (FOX) | 1 | $157.95 | |
| 30 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 31 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 33 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 34 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 35 | 0603-911 | RING,RETAINING-SPIRAL | 1 | $16.49 | |
| 36 | 0603-805 | ADJUSTER,SPRING-SHOCK (FOX)-THREADED BOD | 1 | $35.95 | |
| 38 | 1604-426 | DECAL, WARNING | 1 | $13.95 |
