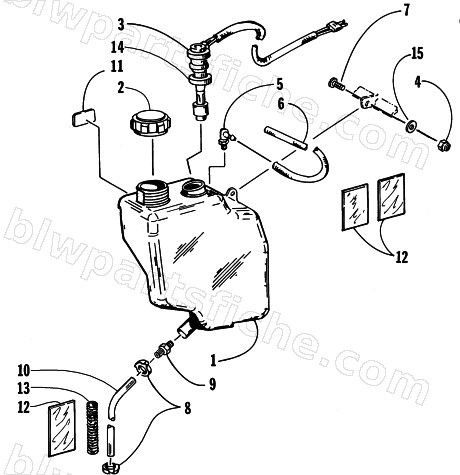

1998 Arctic Cat ZRT 800 — OIL TANK ASSEMBLY
1998 ZRT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-802 | TANK,OIL-W/ONE #10-24 INSERT | 1 | $100.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 3 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 4 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 6 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 7 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 8 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 9 | 0670-117 | OUTLET,OILTANK-5/16 TUBE | 1 | $3.95 | |
| 10 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 10 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 11 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 12 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 13 | 0670-333 | COVER,OIL LINE-LOOM CTL | 1 | $6.95 | |
| 14 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 15 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
