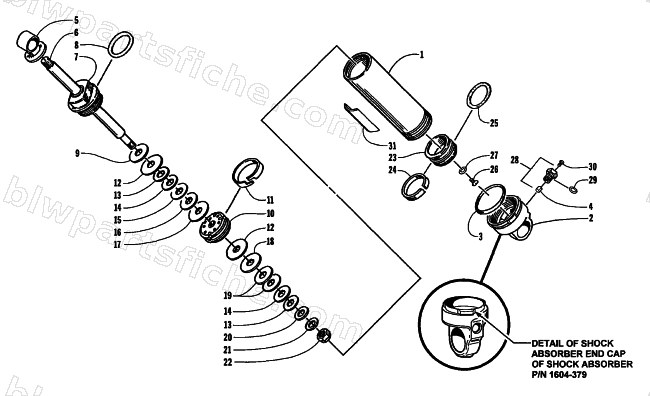

1998 Arctic Cat ZRT 800 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER (1604-379)
1998 ZRT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1604-379 | SHOCK,FRONT ARM-FOX ('98 ZR) | 1 | $591.95 | |
| 1 | 1604-415 | BODY, SHOCK | 1 | $212.95 | |
| 2 | 1604-578 | ENDCAP, SHOCK - ASSY (FOX) | 1 | $157.95 | |
| 3 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 5 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 7 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 8 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 13 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 15 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 16 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 17 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 18 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 19 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 20 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 0703-722 | PISTON,FLOATING-ASSY (1.459 BORE) | 1 | $117.95 | |
| 24 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 25 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 26 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 27 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 28 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 29 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 1604-426 | DECAL, WARNING | 1 | $13.95 |
