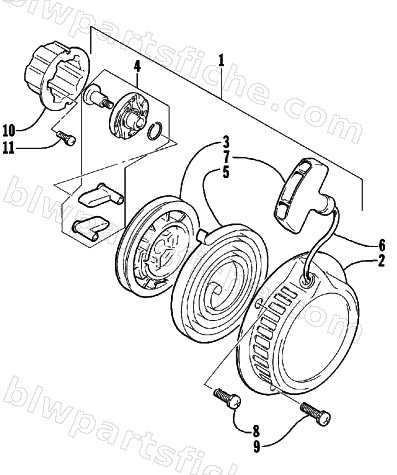

1999 Arctic Cat KITTY CAT — RECOIL STARTER
1999 KITTY CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-135 | STARTER ASSY, RECOIL | 1 | $221.95 | |
| 2 | 3005-159 | CASE, STARTER | 1 | $208.95 | |
| 4 | 3005-161 | RATCHET SET | 1 | $33.95 | |
| 5 | 3005-162 | SPRING, STARTER ROLL | 1 | $34.95 | |
| 6 | 3005-163 | STARTER ROPE | 1 | $15.11 | |
| 7 | 3005-164 | GRIP ASSY, STARTER | 1 | $14.95 | |
| 8 | 3004-854 | SCREW,M6X8 | 1 | $2.95 | |
| 10 | 3005-136 | PULLEY, STARTER | 1 | $20.95 | |
| 11 | 3004-855 | SCREW,M5X20 | 1 | $1.95 |
