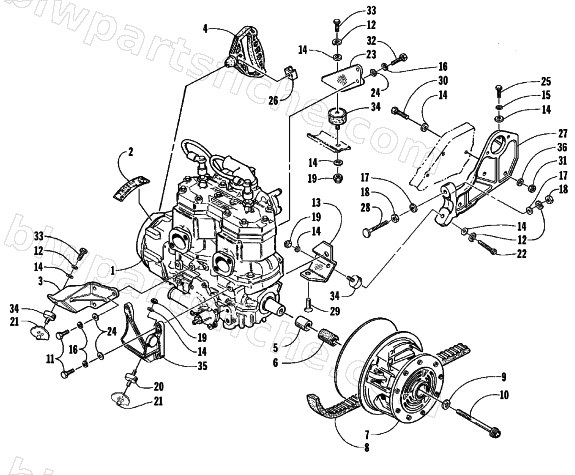

1999 Arctic Cat POWDER SPECIAL 600 EFI II LE — ENGINE AND RELATED PARTS
1999 POWDER SPECIAL 600 EFI II LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-247 | ENGINE,600X2 EFI W/O EFI COMP(662-233) | 1 | $5,523.95 | |
| 3 | 0708-060 | BRKT,ENG MTG-RH (FRONT) MACH (5 & 600 TW | 1 | $61.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 6 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 7 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 8 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 9 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 10 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 11 | 8012-134 | SCREW,CAP-HHNLP 5/16-18X1.25 G5 Z&Y | 1 | $1.95 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 0708-120 | BRKT, ENG,MTG-LH REAR MACH | 1 | $197.95 | |
| 14 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 15 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 16 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 17 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 18 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 19 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 20 | 0608-250 | MOUNT,ENG-60 DURO (DOUBLE MALE) | 1 | $27.95 | |
| 21 | 0623-699 | INSERT,THREADED-.375 X 16 (ALS4-616-312) | 1 | $3.02 | |
| 23 | 0708-086 | BRKT,ENG MTG-RH REAR-MACH | 1 | $37.95 | |
| 24 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 25 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 26 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 27 | 0708-096 | BRKT,ENG MTG/BEARING SUPPORT-MACH | 1 | $106.95 | |
| 28 | 0608-197 | BUMPER,TORQUE-ENGINE (98 PROD) | 1 | $22.01 | |
| 29 | 0623-095 | SCREW,MACH-HSFH 1/2-13X1.00 Z&Y | 1 | $6.47 | |
| 30 | 0623-628 | SCREW,CAP-HH,3/8X16-1 3/8 ZY | 1 | $0.55 | |
| 31 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 32 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 33 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 34 | 0608-251 | MOUNT,ENG-60 DURO (FULL WASHER) | 1 | $26.95 | |
| 35 | 0708-045 | BRKT,ENG MTG-LH FRONT-MACH | 1 | $163.95 | |
| 36 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
