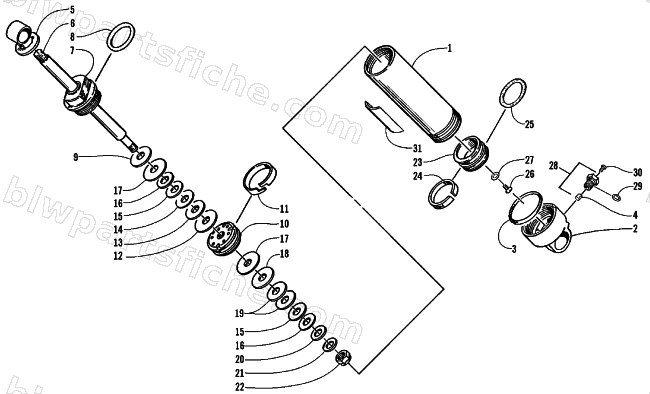

1999 Arctic Cat POWDER SPECIAL 600 EFI II LE — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
1999 POWDER SPECIAL 600 EFI II LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-467 | SHOCK,FRT ARM-ASSY MELLONITE | 1 | $590.95 | |
| 1 | 1604-293 | BODY, SHOCK-1.625X5.580 | 1 | $61.95 | |
| 2 | 1604-294 | END CAP, SHOCK - W/LUGS | 1 | $141.95 | |
| 3 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 5 | 0704-385 | EYELET,SHOCK - .630 - WELD'T | 1 | $79.95 | |
| 7 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 8 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 9 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 10 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 11 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 12 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 13 | 1603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $4.82 | |
| 14 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 15 | 1603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $4.13 | |
| 16 | 1603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $4.40 | |
| 17 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 18 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 19 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 20 | 1603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $4.68 | |
| 21 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 22 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 23 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 24 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 25 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 26 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 28 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 30 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 31 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 |
