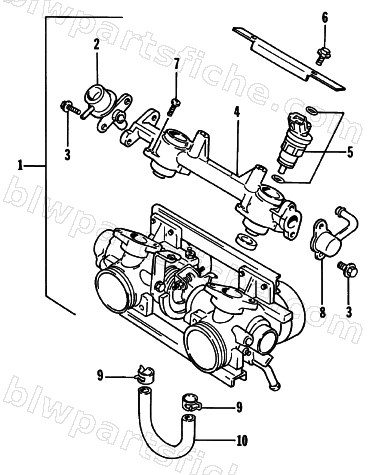

1999 Arctic Cat POWDER SPECIAL 600 EFI II LE — THROTTLE BODY ASSEMBLY
1999 POWDER SPECIAL 600 EFI II LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-443 | BODY ASSY, THROTTLE (CIRCLE) | 1 | $2,839.95 | |
| 1 | 3005-435 | BODY ASSY, THROTTLE (SQUARE) | 1 | $2,638.95 | |
| 1 | 3005-442 | BODY ASSY, THROTTLE (TRIANGLE) | 1 | $3,166.95 | |
| 2 | 3005-074 | REGULATOR COMP, FUEL PRESSURE | 1 | $451.95 | |
| 3 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 4 | 3005-269 | PIPE,DELIVERY | 1 | $813.95 | |
| 5 | 3005-075 | INJECTOR ASSY, FUEL (CIRCLE) | 1 | $647.95 | |
| 5 | 3005-076 | INJECTOR ASSY, FUEL (SQUARE) | 1 | $666.95 | |
| 5 | 3005-077 | INJECTOR ASSY, FUEL (TRIANGLE) | 1 | $666.95 | |
| 7 | 3005-320 | SCREW,M5X16 | 1 | $1.95 | |
| 8 | 3005-079 | PIPE COMP, FUEL INLET | 1 | $498.95 | |
| 9 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 10 | 3005-103 | HOSE, WATER | 1 | $68.95 |
