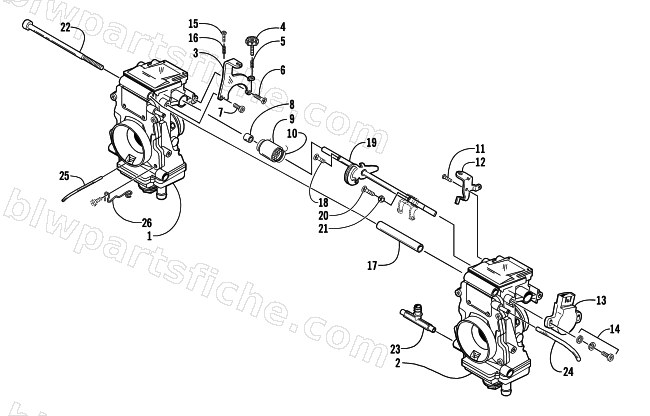

1999 Arctic Cat POWDER SPECIAL 700 LE — CARBURETOR - EXTERNAL PARTS
1999 POWDER SPECIAL 700 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0670-912 | CARB,TM40-B39 - RACK STYLE ('99 700 P/S | 1 | $1,172.95 | |
| 1 | 6506-092 | CARBURETOR ASSY-RH(0670-912) | 1 | $582.95 | |
| 2 | 6506-093 | CARBURETOR ASSY-LH(0670-912) | 1 | $624.95 | |
| 3 | 6506-130 | BRACKET | 1 | $47.95 | |
| 4 | 6506-061 | ADJUSTER SCREW | 1 | $20.63 | |
| 5 | 6506-062 | SPRING | 1 | $5.51 | |
| 6 | 6506-063 | SCREW | 1 | $1.37 | |
| 7 | 6506-064 | SCREW | 1 | $1.37 | |
| 8 | 6506-048 | SPACER | 1 | $3.95 | |
| 9 | 6506-049 | SPRING SLEEVE | 1 | $9.95 | |
| 10 | 6506-135 | SPRING | 1 | $31.95 | |
| 11 | 6506-085 | SCREW | 1 | $1.37 | |
| 12 | 6506-086 | BRACKET | 1 | $59.95 | |
| 13 | 6506-074 | SENSOR ASSEMBLY | 1 | $183.95 | |
| 14 | 6506-075 | SCREW | 1 | $3.16 | |
| 15 | 6506-134 | SCREW | 1 | $3.95 | |
| 16 | 6506-056 | SPRING | 1 | $3.95 | |
| 17 | 6506-143 | SPACER | 1 | $33.95 | |
| 18 | 6506-046 | SCREW | 1 | $3.44 | |
| 19 | 6506-060 | SHAFT ASSEMBLY | 1 | $232.95 | |
| 20 | 6506-042 | SCREW | 1 | $3.44 | |
| 21 | 6506-041 | RING | 1 | $33.95 | |
| 22 | 6506-128 | BOLT | 1 | $20.63 | |
| 23 | 6506-127 | NIPPLE ASSY. | 1 | $38.95 | |
| 24 | 6506-133 | HOSE | 1 | $15.11 | |
| 25 | 6506-141 | HOSE | 1 | $20.63 | |
| 26 | 6506-131 | CLIP | 1 | $17.95 |
