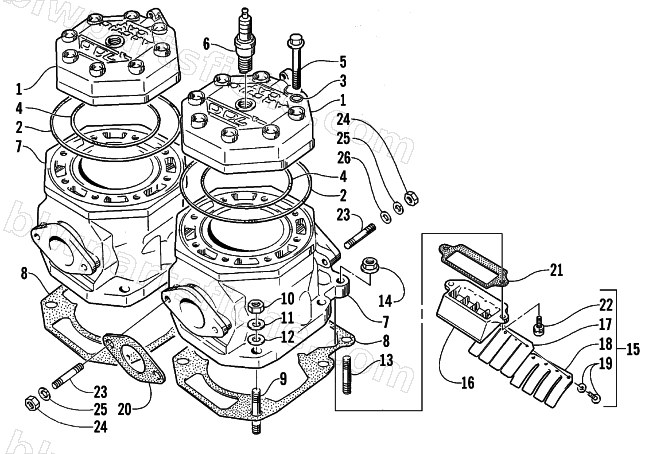

CYLINDER AND HEAD ASSEMBLY
1999 POWDER SPECIAL 700 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-757 | HEAD,CYLINDER,700 L/C | 1 | $612.95 | |
| 2 | 3003-334 | O RING,HEAD-OUTER | 1 | $26.95 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-335 | O RING,HEAD-INNER | 1 | $33.95 | |
| 5 | 3007-408 | BOLT | 1 | $4.26 | |
| 6 | 0217-634 | SPARK PLUG BR10ES(SOLID CAP) | 1 | $4.95 | |
| 7 | 3004-458 | CYLINDER, 700 L/C | 1 | $1,168.95 | |
| 8 | 3003-599 | GASKET,CYL BASE 650/700L/C | 1 | $71.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3004-989 | NUT,10MM | 1 | $2.75 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3007-410 | WASHER | 1 | $2.75 | |
| 13 | 3007-520 | BOLT,STUD | 1 | $3.16 | |
| 14 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 15 | 3003-797 | VALVE ASSY,REED | 1 | $249.95 | |
| 17 | 3003-457 | VALVE, REED | 1 | $43.95 | |
| 19 | 3004-422 | SCREW,M3X6 | 1 | $2.95 | |
| 20 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 21 | 3004-134 | GASKET, REED VALVE-NON ASBESTOS | 1 | $13.95 | |
| 22 | 3007-689 | SCREW,M6X16 | 1 | $3.85 | |
| 23 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 24 | 3007-416 | NUT | 1 | $2.75 | |
| 25 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 26 | 3423-204 | WASHER | 1 | $1.95 |
