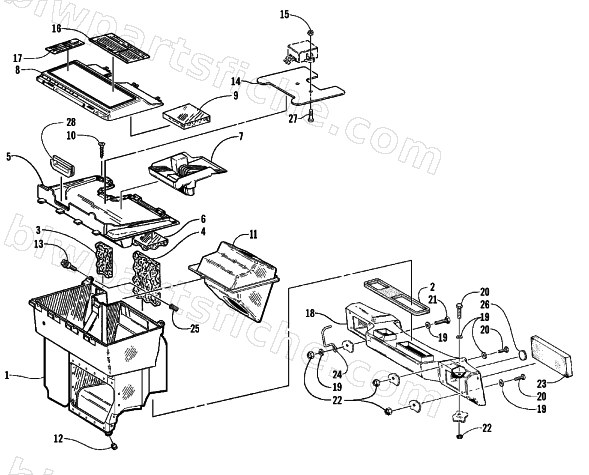

AIR SILENCER ASSEMBLY
1999 POWDER SPECIAL 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-415 | AIR SILENCER - ASSY, '99 700 | 1 | $151.95 | |
| 2 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 5 | 0770-349 | TRAY,COVER-ROUTED(99 PROD) | 1 | $36.95 | |
| 6 | 0617-251 | FOAM,AIR SILENCER-TOP LID | 1 | $8.95 | |
| 7 | 0670-826 | TRAY, TOOL | 1 | $30.95 | |
| 8 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 9 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 10 | 0623-770 | SCREW,SELF TAP-PHFH #10-16X.75 TYP B Z&Y | 1 | $1.37 | |
| 11 | 0670-879 | RESONATOR, Q-WAVE - INLET | 1 | $36.95 | |
| 12 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 13 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 14 | 1606-568 | PLATE,CDI/COIL (99P.S.) | 1 | $10.97 | |
| 15 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 3611-328 | DECAL, JET CHART-99 PSE | 1 | $20.95 | |
| 17 | 2611-765 | DECAL, TOOLBOX | 1 | $8.95 | |
| 18 | 0670-828 | PLENUM,AIR SILENCER - ROUTED | 1 | $122.95 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 24 | 0645-269 | BRKT,GUIDE-HARNESS/ROPE | 1 | $13.95 | |
| 25 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 26 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 27 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 28 | 0670-827 | GROMMET, ECU | 1 | $5.95 |
