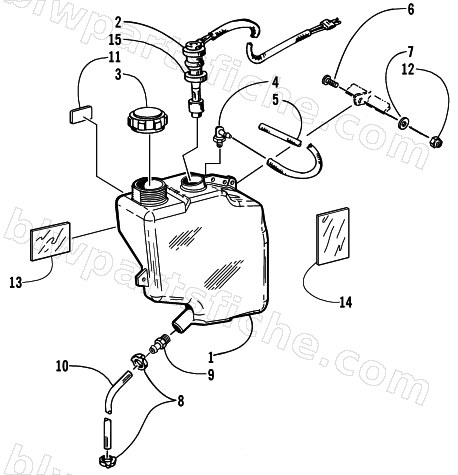

OIL TANK ASSEMBLY
1999 POWDER SPECIAL 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-925 | OIL TANK | 1 | $69.95 | |
| 2 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 3 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 4 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 9 | 0670-118 | OUTLET,OILTANK-1/2 TUBE | 1 | $4.95 | |
| 10 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 11 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 14 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 15 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 |
