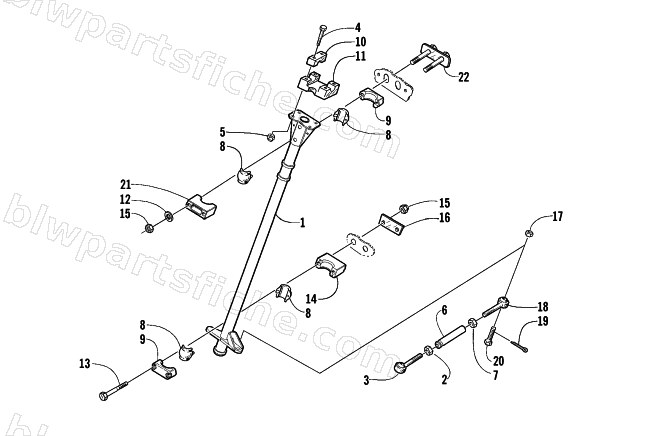

1999 Arctic Cat Z 440 SNO-PRO — STEERING POST ASSEMBLY
1999 Z 440 SNO-PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-263 | POST,STEERING-WELDMENT | 1 | $212.95 | |
| 2 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 3 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 4 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 5 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 0605-404 | TUBE,TIE ROD-.625 X 14.50" (3/8-24) | 1 | $28.95 | |
| 7 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 8 | 0605-378 | BEARING,STEERING POST-(1.00" I.D.) | 1 | $2.95 | |
| 9 | 0705-264 | CAP,BEARING-MACHINED | 1 | $22.01 | |
| 10 | 0605-304 | CAP,STEERING ADJUSTER | 1 | $18.95 | |
| 11 | 0605-305 | ADJUSTER,BLOCK STEERING-0105-351 PAINTED | 1 | $50.95 | |
| 12 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 13 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 14 | 0705-265 | HOUSING,BEARING-MACHINED | 1 | $25.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0605-385 | PLATE,BACKING-STEERING (NARROW) | 1 | $6.95 | |
| 17 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 22 | 0605-427 | PLATE,BACKING-STEERING | 1 | $49.95 |
