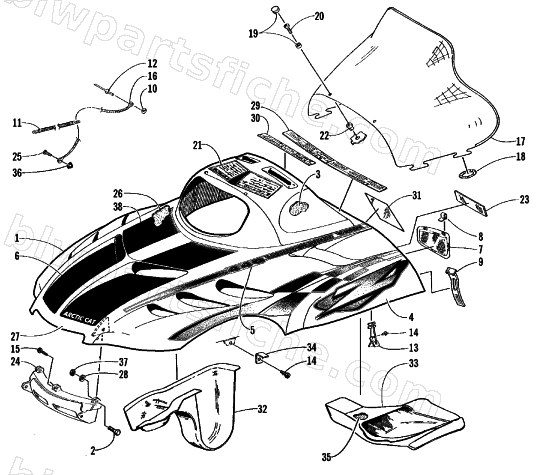

HOOD AND WINDSHIELD ASSEMBLY
1999 Z 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-158 | HOOD W/O DECALS 98Z440 | 1 | $1,515.95 | |
| 1 | 0718-756 | HOOD W/DECALS-99 Z 440 | 1 | $2,019.95 | |
| 2 | 0623-296 | SCREW,MACH-HWH 10-24X1.0-Z&Y | 1 | $0.35 | |
| 3 | 0717-100 | FOAM,HOOD-UPPER RH | 1 | $5.95 | |
| 3 | 0717-101 | FOAM,HOOD-UPPER LH | 1 | $5.95 | |
| 4 | 3611-206 | DECAL,HOOD-LOWER - RH | 1 | $99.95 | |
| 4 | 3611-207 | DECAL,HOOD-LOWER - LH | 1 | $99.95 | |
| 5 | 3611-210 | DECAL,HOOD-UPPER - RH (440) | 1 | $52.95 | |
| 5 | 3611-211 | DECAL,HOOD-UPPER - LH (440) | 1 | $52.95 | |
| 6 | 3611-218 | DECAL,HOOD-FRONT VENT - RH | 1 | $40.95 | |
| 6 | 3611-219 | DECAL,HOOD-FRONT VENT - LH | 1 | $40.95 | |
| 7 | 1606-214 | SCREEN,HOOD-REAR | 1 | $32.95 | |
| 8 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 10 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 11 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 1606-049 | GUIDE,HOOD | 1 | $3.95 | |
| 14 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 15 | 0623-684 | SCREW,SELF TAP-HWH #12X1-HILO-Z&Y | 1 | $0.95 | |
| 16 | 0616-614 | CABLE,HOOD-36.5 (.20 EYELET BOTH ENDS) | 1 | $15.11 | |
| 17 | 1606-074 | WINDSHIELD, FORMED | 1 | $113.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 2611-971 | DECAL,WARNING-GENERAL-HOOD | 1 | $134.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 2611-769 | DECAL,WARNING-SEATING CAP.-GLOSSY | 1 | $16.95 | |
| 24 | 1606-047 | HINGE,HOOD | 1 | $57.95 | |
| 25 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 26 | 0717-106 | FOAM,HOOD-MIDDLE RH ('98 440 Z) | 1 | $13.95 | |
| 26 | 0717-107 | FOAM,HOOD-MIDDLE LH ('98 440 Z) | 1 | $13.95 | |
| 27 | 2611-896 | DECAL,HOOD-"ARCTIC CAT" | 1 | $100.95 | |
| 28 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 29 | 2611-970 | DECAL,WARNING-BRAKE/ENGINE | 1 | $30.95 | |
| 30 | 2611-973 | DECAL,CAUTION-FUEL-ENG/FR | 1 | $160.95 | |
| 31 | 2611-972 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $61.95 | |
| 32 | 1606-228 | DUCT,AIR-IN ('98 F/C 'ZR') | 1 | $103.95 | |
| 33 | 1606-229 | DUCT,AIR-OUT ('98 F/C 'ZR') | 1 | $66.95 | |
| 34 | 1606-188 | BRKT,AIR DUCT | 1 | $23.39 | |
| 35 | 0617-266 | FOAM,DUCT-AIR OUT (TOP) '98 440 Z | 1 | $3.95 | |
| 36 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 37 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 38 | 3611-215 | DECAL,HOOD-CENTER | 1 | $43.95 |
