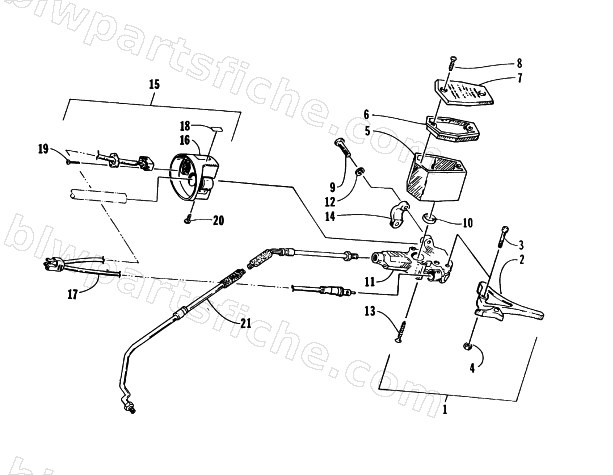

HYDRAULIC BRAKE CONTROL ASSEMBLY
1999 Z 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 | |
| 1 | 0602-943 | CYLINDER,MASTER (98 PROD) | 1 | $283.95 | |
| 2 | 1602-740 | LEVER,BRAKE (2005 ) | 1 | $49.95 | |
| 3 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 4 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 5 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 6 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 7 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 8 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 9 | 0623-613 | SCREW,CAP-TSH-HYDRAULIC BRAKE | 1 | $2.06 | |
| 10 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 15 | 0609-407 | CONTROL,DIM-HYD W/ ON/OFF | 1 | $212.95 | |
| 16 | 0609-322 | CONTROL, DMR W/O SWITCHES-HI/LO | 1 | $81.95 | |
| 17 | 0609-267 | SWITCH ASS'Y, DIM/BRAKE(HYD)-24MM | 1 | $79.95 | |
| 18 | 0609-311 | PLATE, SWITCH-BLANK | 1 | $8.95 | |
| 19 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 20 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 21 | 1602-488 | R/B 3602-088 | 1 | $92.95 |
