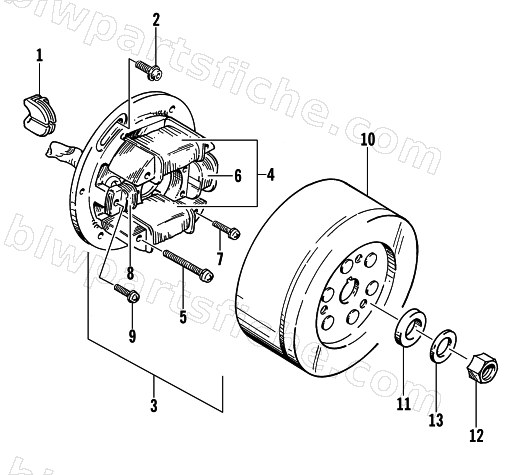

MAGNETO
1999 ZL 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-918 | GROMMET, MAGNETO LEAD WIRE | 1 | $5.92 | |
| 2 | 3007-449 | BOLT | 1 | $3.16 | |
| 3 | 3005-560 | STATOR | 1 | $974.95 | |
| 4 | 3005-352 | COIL, LIGHTING | 1 | $297.95 | |
| 5 | 3003-673 | SCREW,M5 X 40 | 1 | $4.95 | |
| 6 | 3005-340 | COIL, PRIMARY | 1 | $318.95 | |
| 7 | 3004-379 | SCREW,M4X25 | 1 | $3.85 | |
| 8 | 3003-694 | COIL, IGNITION TIMING | 1 | $354.95 | |
| 9 | 3005-572 | SCREW,M4X20 | 1 | $2.95 | |
| 10 | 3003-690 | ROTOR,FLYWHEEL 32102-88B01 | 1 | $1,248.95 | |
| 11 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 12 | 3007-556 | NUT | 1 | $3.95 | |
| 13 | 3007-427 | LOCK WASHER | 1 | $4.40 |
