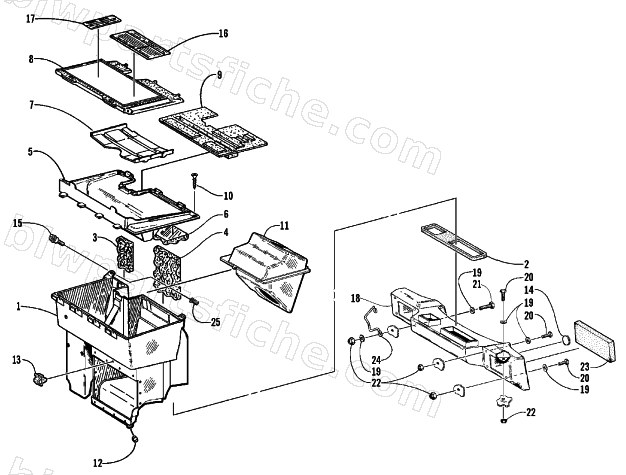

AIR SILENCER ASSEMBLY
1999 ZL 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-344 | AIR SILENCER - ASSY, '99 ZR 500 | 1 | $149.95 | |
| 2 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 5 | 0670-920 | COVER, AIR SILENCER | 1 | $29.95 | |
| 6 | 0617-251 | FOAM,AIR SILENCER-TOP LID | 1 | $8.95 | |
| 7 | 0670-601 | TRAY, MANUAL-TOOL BOX | 1 | $40.95 | |
| 8 | 0616-973 | COVER, TOOL BOX | 1 | $26.95 | |
| 9 | 0617-241 | FOAM, TOOL BOX-UPPER | 1 | $53.95 | |
| 10 | 0623-770 | SCREW,SELF TAP-PHFH #10-16X.75 TYP B Z&Y | 1 | $1.37 | |
| 11 | 0670-879 | RESONATOR, Q-WAVE - INLET | 1 | $36.95 | |
| 12 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 13 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 14 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 15 | 0623-024 | SCREW,#10-32 X 1 HWH | 1 | $0.95 | |
| 16 | 3611-244 | DECAL, JET CHART-99 ZL B | 1 | $22.95 | |
| 17 | 2611-765 | DECAL, TOOLBOX | 1 | $8.95 | |
| 18 | 0670-828 | PLENUM,AIR SILENCER - ROUTED | 1 | $122.95 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 24 | 0645-269 | BRKT,GUIDE-HARNESS/ROPE | 1 | $13.95 | |
| 25 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 26 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 27 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 |
