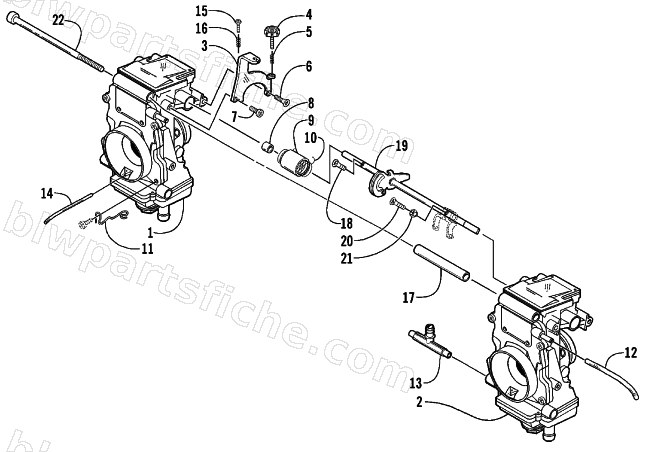

1999 Arctic Cat ZL 600 — CARBURETOR - EXTERNAL PARTS (TM38)
1999 ZL 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0670-911 | CARB,TM38-B209-RACK STYLE | 1 | $1,163.95 | |
| 1 | 6506-155 | CARB, TM38-B206 LH-ASSY (REF 0670-910) | 1 | $569.95 | |
| 2 | 6506-154 | CARB, TM38-B206 RH-ASSY (REF 0670-910) | 1 | $441.95 | |
| 3 | 6506-058 | BRACKET | 1 | $50.95 | |
| 4 | 6506-061 | ADJUSTER SCREW | 1 | $20.63 | |
| 5 | 6506-062 | SPRING | 1 | $5.51 | |
| 6 | 6506-063 | SCREW | 1 | $1.37 | |
| 7 | 6506-064 | SCREW | 1 | $1.37 | |
| 8 | 6506-048 | SPACER | 1 | $3.95 | |
| 9 | 6506-049 | SPRING SLEEVE | 1 | $9.95 | |
| 10 | 6506-059 | SPRING | 1 | $17.95 | |
| 11 | 6506-131 | CLIP | 1 | $17.95 | |
| 12 | 6506-133 | HOSE | 1 | $15.11 | |
| 13 | 6506-140 | FITTING, TEE | 1 | $53.95 | |
| 14 | 6506-141 | HOSE | 1 | $20.63 | |
| 15 | 6506-134 | SCREW | 1 | $3.95 | |
| 16 | 6506-056 | SPRING | 1 | $3.95 | |
| 17 | 6506-152 | SPACER | 1 | $34.95 | |
| 18 | 6506-046 | SCREW | 1 | $3.44 | |
| 19 | 6506-136 | SHAFT ASSY | 1 | $223.95 | |
| 20 | 6506-042 | SCREW | 1 | $3.44 | |
| 21 | 6506-041 | RING | 1 | $33.95 | |
| 22 | 6506-065 | BOLT | 1 | $17.87 |
