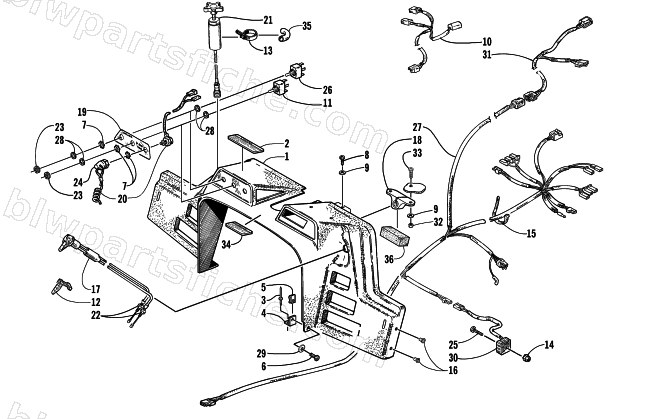

1999 Arctic Cat ZR 440 SNO-PRO — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1999 ZR 440 SNO-PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-370 | CONSOLE,(W/ TETHER & NO KEY) | 1 | $451.95 | |
| 2 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 7 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 0686-513 | HARNESS, HOOD-TACH/SPEEDO | 1 | $97.95 | |
| 11 | 0609-233 | SWITCH,HIGH/LOW BEAM | 1 | $25.95 | |
| 12 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 13 | 0716-895 | CLAMP,HOSE (#20) W/ HEAT SHRINK | 1 | $5.95 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 17 | 0687-056 | CABLE,CHOKE-TWIN | 1 | $109.95 | |
| 18 | 0106-333 | BUSHING,RECOIL | 1 | $30.95 | |
| 19 | 3611-140 | PLATE,CONSOLE-SWITCHES ('98 440 PRO) | 1 | $29.95 | |
| 20 | 0630-077 | SWITCH,TETHER-N.O. ASSY. | 1 | $70.95 | |
| 21 | 1604-431 | REZY,EASY ADJ FRT ARM-('98 440 PRO | 1 | $448.95 | |
| 22 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 23 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 25 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 26 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 27 | 0686-617 | HARNESS,MAIN-99 SNO PRO | 1 | $209.95 | |
| 28 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 29 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 30 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 31 | 0686-436 | HARNESS,HOOD-HEADLIGHT&SPEEDO | 1 | $68.95 | |
| 32 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 33 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 34 | 3611-011 | DECAL,CAUTION-FUEL | 1 | $17.87 | |
| 35 | 0716-894 | TUBING,HEAT SHRINK-CTL (2.50") | 1 | $0.55 | |
| 36 | 0617-291 | FOAM,BLOCK-SEAT (REAR) -'98 440 PRO | 1 | $3.95 |
