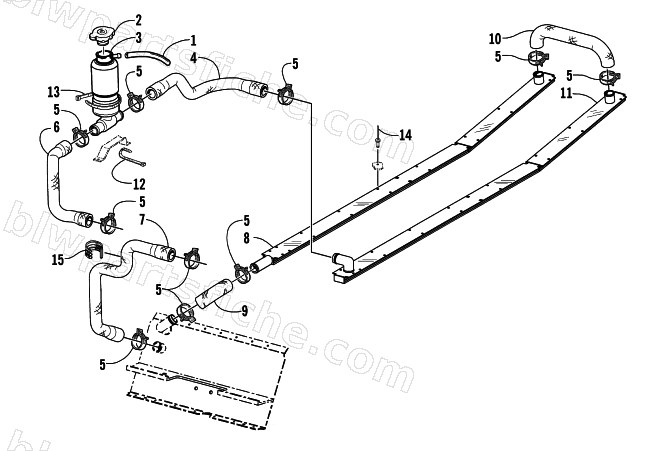

1999 Arctic Cat ZR 440 SNO-PRO — COOLING ASSEMBLY
1999 ZR 440 SNO-PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 1 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 2 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 3 | 1606-396 | TANK,COOLANT-'ZR' STYLE | 1 | $41.95 | |
| 4 | 0610-337 | HOSE,COOLANT-(LH EXCH TO TANK) | 1 | $90.95 | |
| 6 | 0610-335 | HOSE,COOLANT-(TANK TO ENG.) | 1 | $62.95 | |
| 7 | 0610-336 | HOSE,COOLANT-(ENG TO FRT EXCH) | 1 | $65.95 | |
| 8 | 0716-956 | HEAT EXCH,RH-WELD'T(99 SNO PRO) | 1 | $332.95 | |
| 9 | 0610-244 | HOSE,COOLANT-FRONT EXCH.TO RH EXCH. | 1 | $26.95 | |
| 10 | 0610-361 | HOSE,COOLANT-REAR ('U'-SHAPED) | 1 | $59.95 | |
| 11 | 0716-957 | HEAT EXCH,LH-WELD'T(99 SNO PRO) | 1 | $245.95 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 | |
| 14 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 15 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 |
