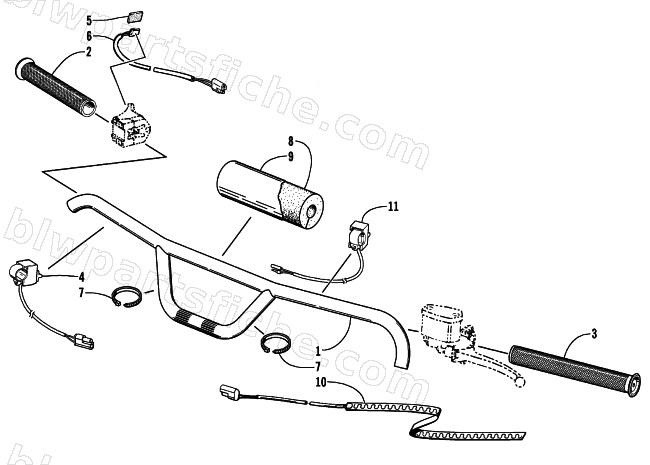

1999 Arctic Cat ZR 440 SNO-PRO — HANDLEBAR ASSEMBLY
1999 ZR 440 SNO-PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-005 | HANDLEBAR-W/HOOKS-PTD GRN | 1 | $74.95 | |
| 2 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 3 | 1606-443 | GRIP,HANDLEBAR-LH-8.75" | 1 | $21.95 | |
| 4 | 0609-471 | SWITCH,STOP-ENGINE (SLIDE) | 1 | $78.95 | |
| 5 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 6 | 0609-415 | ELEMENT, HEATER - TW W/ #21 | 1 | $89.95 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 1606-480 | FOAM,HANDLEBAR-'98 440 PRO | 1 | $19.25 | |
| 9 | 0705-251 | WRAP,HANDLEBAR PAD-W/3611-420(99 PRO) | 1 | $14.95 | |
| 10 | 0609-420 | ELEMENT, HW-STRIP W/ #21 | 1 | $106.95 | |
| 10 | 0609-465 | ELEMENT, HW-LH ZRV STRIP W/ #21 | 1 | $106.95 | |
| 11 | 0609-472 | SWITCH,TIMING-SELECT (SLIDE) | 1 | $85.95 |
