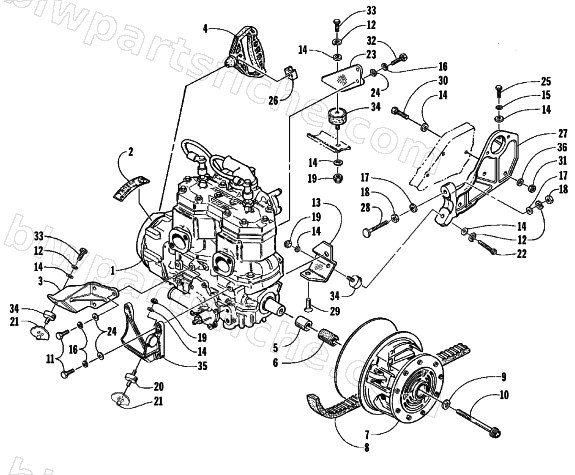

ENGINE AND RELATED PARTS
1999 ZR 500 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-232 | ENGINE,500 CC L/C -CASE REED | 1 | $5,271.95 | |
| 3 | 0708-060 | BRKT,ENG MTG-RH (FRONT) MACH (5 & 600 TW | 1 | $61.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 6 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 7 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 8 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 9 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 10 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 11 | 8012-134 | SCREW,CAP-HHNLP 5/16-18X1.25 G5 Z&Y | 1 | $1.95 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 0708-120 | BRKT, ENG,MTG-LH REAR MACH | 1 | $197.95 | |
| 14 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 15 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 16 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 17 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 18 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 19 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 20 | 0608-118 | MOUNT,ENGINE-DOUBLE MALE | 1 | $26.95 | |
| 21 | 0623-699 | INSERT,THREADED-.375 X 16 (ALS4-616-312) | 1 | $3.02 | |
| 23 | 0708-086 | BRKT,ENG MTG-RH REAR-MACH | 1 | $37.95 | |
| 24 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 25 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 26 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 27 | 0708-096 | BRKT,ENG MTG/BEARING SUPPORT-MACH | 1 | $106.95 | |
| 28 | 0608-197 | BUMPER,TORQUE-ENGINE (98 PROD) | 1 | $22.01 | |
| 29 | 0623-095 | SCREW,MACH-HSFH 1/2-13X1.00 Z&Y | 1 | $6.47 | |
| 30 | 0623-628 | SCREW,CAP-HH,3/8X16-1 3/8 ZY | 1 | $0.55 | |
| 31 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 32 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 33 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 34 | 0608-217 | MOUNT,ENG-50 DURO,.75 STUD,FULL WASHER | 1 | $26.95 | |
| 35 | 0708-045 | BRKT,ENG MTG-LH FRONT-MACH | 1 | $163.95 | |
| 36 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
