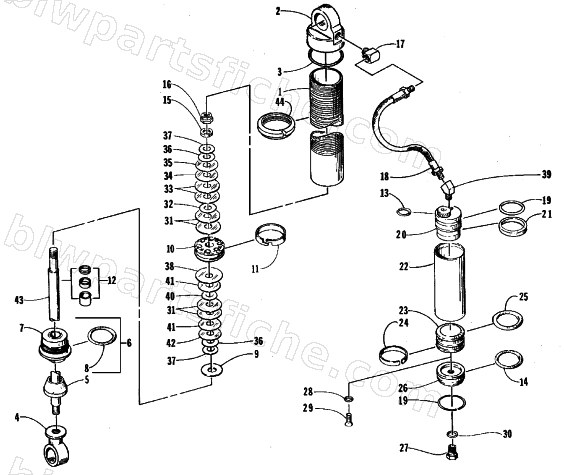

FRONT SUSPENSION SHOCK ABSORBER
1999 ZR 500 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1603-341 | SHOCK,SKI-CLICKER (ZR 600 B) | 1 | $1,140.95 | |
| 0 | 1639-771 | REBUILD KIT, A/C SHOCK ("CLICKER" SHOCK) | 1 | $74.95 | |
| 1 | 1603-359 | BODY,SHOCK-7.330 TLG (FOX),GROOVED | 1 | $140.95 | |
| 2 | 0603-919 | END CAP,SHOCK-(SKI W/ REZY) | 1 | $143.95 | |
| 3 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 4 | 0603-920 | EYELET,1.012 x 1.637 x 2.26 | 1 | $98.95 | |
| 5 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 6 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 8 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 9 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 10 | 0604-741 | PISTON, .093 ORFICE | 1 | $121.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-280 | SPACER,SHOCK .125 | 1 | $10.97 | |
| 12 | 0603-281 | SPACER,SHOCK .500 | 1 | $32.95 | |
| 12 | 0603-282 | SPACER,SHOCK 1.000 | 1 | $43.95 | |
| 13 | 0603-975 | RING, .070 X .801 | 1 | $0.65 | |
| 14 | 0603-968 | O-RING - .139 X 1.484 | 1 | $2.75 | |
| 15 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 16 | 0603-921 | NUT, CAP | 1 | $16.49 | |
| 17 | 0603-297 | FITTING,ELBOW-FOX | 1 | $8.95 | |
| 19 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 20 | 2603-378 | DAMPING ADJUST,COMPRESSION-ASSY-CLR | 1 | $215.95 | |
| 21 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 22 | 0603-672 | BODY, RESERVIOR-4" ALUM. (BLACK) | 1 | $371.95 | |
| 23 | 0603-673 | PISTON, RES-1.834 BORE(FOX) | 1 | $113.95 | |
| 24 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 25 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 26 | 0603-676 | ENDCAP, RESERVIOR | 1 | $106.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 29 | 0703-724 | SCREW,RELIEF-W/ O-RING-ASSY | 1 | $0.65 | |
| 31 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 32 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 33 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 34 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 35 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 36 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 37 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 38 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 39 | 0604-998 | ELBOW,45 DEG. | 1 | $57.95 | |
| 40 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 41 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 42 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 43 | 0603-961 | ROD, SHOCK - 8.500 (RB 2603-320) | 1 | $53.95 | |
| 44 | 0603-805 | ADJUSTER,SPRING-SHOCK (FOX)-THREADED BOD | 1 | $35.95 |
