1999 Arctic Cat ZRT 600 — CYLINDER AND HEAD ASSEMBLY
1999 ZRT 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

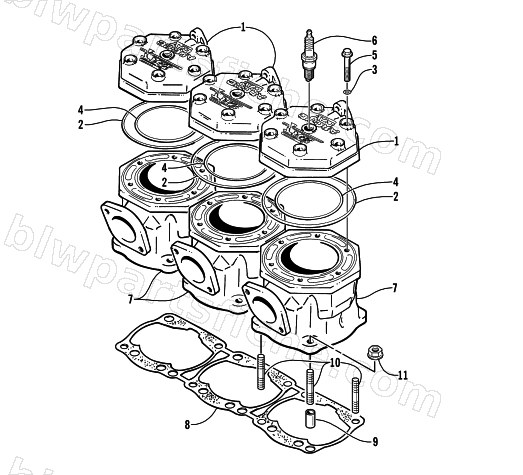

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-771 | HEAD, CYLINDER-600LC | 1 | $335.95 | |
| 1 | 3004-524 | HEAD, CYLINDER-800LC | 1 | $320.95 | |
| 2 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 2 | 3004-081 | O-RING,HEAD-OUTER | 1 | $23.39 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-634 | O RING,440 L/C INNER | 1 | $30.95 | |
| 4 | 3004-080 | O-RING,HEAD-INNER | 1 | $32.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 5 | 3007-238 | BOLT,EGR VALVE | 1 | $4.95 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-358 | CYLINDER, 600 X3 L/C | 1 | $1,202.95 | |
| 7 | 3004-525 | CYLINDER (800 L/C) | 1 | $580.29 | |
| 8 | 3005-016 | GASKET, CYLINDER(REPL. 3 OF 3004-813) | 1 | $68.95 | |
| 8 | 3008-588 | GASKET, CYLINDER | 1 | $66.95 | |
| 9 | 3004-822 | PIN,DOWEL(ALIGMENT) | 1 | $3.85 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3004-779 | STUD,8MM | 1 | $12.35 | |
| 10 | 3004-989 | NUT,10MM | 1 | $2.75 | |
| 11 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3007-410 | WASHER | 1 | $2.75 |
