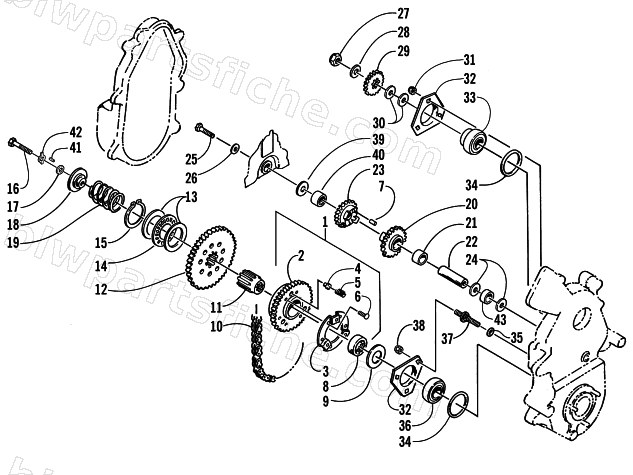

2000 Arctic Cat BEARCAT 340 — DRIVE/REVERSE DROPCASE ASSEMBLY
2000 BEARCAT 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-629 | SPROCKET, 44T-13W-ASSY | 1 | $299.95 | |
| 3 | 0602-144 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 0602-133 | PIN,SLIP-.993 LG | 1 | $17.87 | |
| 5 | 0602-138 | SPRING,COMPRESSION-REVERSE | 1 | $3.02 | |
| 6 | 8007-397 | SCREW,MACH-CRTH 10-24X.50 G2 Z&Y | 1 | $0.15 | |
| 7 | 0602-366 | PIN, ALIGNING-IDLERS | 1 | $1.37 | |
| 8 | 0602-016 | BEARING,J-2012 DC-1.250 | 1 | $23.39 | |
| 9 | 0602-012 | SPACER, EXT SHAFT-1.0 X 2.0 X .155TH | 1 | $19.25 | |
| 10 | 1602-042 | CHAIN, 72P - 13 WIDE | 1 | $117.95 | |
| 11 | 1602-048 | SHAFT, EXTENSION | 1 | $129.95 | |
| 12 | 0702-048 | GEAR, 55T REVERSE-ASSY | 1 | $429.95 | |
| 13 | 0602-023 | WASHER,THRUST-2.25 | 1 | $15.11 | |
| 14 | 0602-022 | BEARING,THRUST | 1 | $23.39 | |
| 15 | 0602-024 | RING,RETAINING | 1 | $3.99 | |
| 17 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 18 | 1602-047 | RETAINER, EXTENSION SHAFT | 1 | $77.95 | |
| 19 | 0602-028 | SPRING, RETURN | 1 | $22.01 | |
| 20 | 0702-147 | SPROCKET,REVERSE-IDLER ASSY | 1 | $210.95 | |
| 21 | 0602-018 | BEARING,DC-.625 | 1 | $19.25 | |
| 22 | 0602-094 | SHAFT, REV IDLER | 1 | $42.95 | |
| 23 | 0702-366 | GEAR, 19T IDLER-ASSY | 1 | $153.95 | |
| 24 | 0602-215 | WASHER, THRUST-.625 ID X.030 X 1.105OD | 1 | $3.85 | |
| 25 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 26 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 27 | 0123-310 | NUT,FLEXLOCK 1/2-20,THIN | 1 | $4.68 | |
| 28 | 0623-231 | WASHER,SPRING-BELLEVILLE | 1 | $4.26 | |
| 29 | 0602-445 | SPROCKET,18T | 1 | $60.95 | |
| 30 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 31 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 32 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 33 | 1702-180 | KIT,REPLACEMENT BEARING-7/8" | 1 | $63.95 | |
| 34 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 35 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 36 | 1702-179 | KIT,REPLACEMENT BEARING-1" | 1 | $79.95 | |
| 37 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 38 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 39 | 1602-044 | WASHER, THRUST-.625 ID X .126 X 1.125 OD | 1 | $13.73 | |
| 40 | 1602-045 | BEARING,DC-.625 X .625 | 1 | $19.25 | |
| 41 | 8070-153 | PIN,SPRING-3/32 X 5/16 SLOTTED P&O | 1 | $0.40 | |
| 42 | 1602-046 | WASHER, TAB LOCK - .390 ID | 1 | $0.65 | |
| 43 | 0602-093 | SPACER,REV SHAFT-.647X.812X.300 THICK | 1 | $9.59 |
