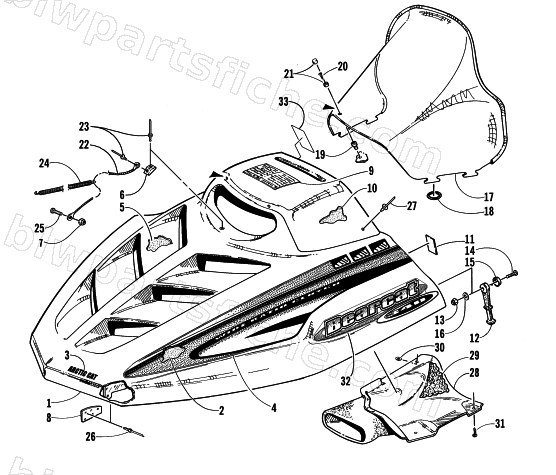

HOOD AND WINDSHIELD ASSEMBLY
2000 BEARCAT 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-779 | HOOD W/DECALS-00 BRC 340 | 1 | $1,700.95 | |
| 1 | 0718-192 | HOOD, W/O DECALS 98 BRC 340/440 | 1 | $1,652.95 | |
| 2 | 0717-058 | FOAM,HOOD-RH | 1 | $32.95 | |
| 2 | 0717-075 | FOAM,HOOD LH | 1 | $26.95 | |
| 3 | 2611-556 | DECAL, HOOD - "ARCTIC CAT" | 1 | $20.95 | |
| 4 | 3611-472 | DECAL,HOOD-RH,UPPER ( 2000 BC ) | 1 | $100.95 | |
| 4 | 3611-475 | DECAL,HOOD-UPPER, L.H. ( 2000 BC-F/C) | 1 | $92.95 | |
| 5 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 5 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 6 | 1606-088 | BRKT,HOOD CABLE | 1 | $6.95 | |
| 7 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 8 | 0616-438 | BRKT, HOOD HINGE | 1 | $6.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 11 | 2611-158 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $17.95 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 15 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0606-121 | HOOD CABLE - 34" | 1 | $15.11 | |
| 23 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 26 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 28 | 0616-756 | DUCT,AIR OUT | 1 | $149.95 | |
| 30 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 31 | 0623-551 | SCREW,SELF TAP-HWH #6X.50-TYPE AB Z&Y | 1 | $0.15 | |
| 32 | 3611-562 | DECAL,HOOD-LOWER,RH "BEARCAT 340" | 1 | $56.95 | |
| 32 | 3611-563 | DECAL,HOOD-LOWER,LH "BEARCAT 340" | 1 | $56.95 | |
| 33 | 2611-309 | DECAL,REVERSE | 1 | $16.95 |
