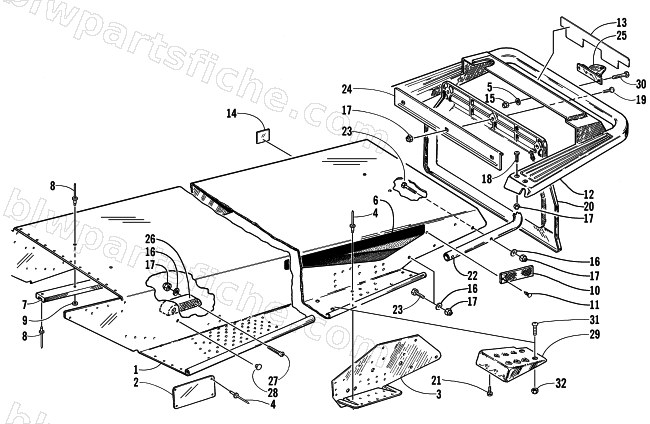

2000 Arctic Cat BEARCAT 340 — TUNNEL AND REAR BUMPER
2000 BEARCAT 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-589 | TUNNEL-ASSY 98 BRC 340 | 1 | $1,382.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 0706-730 | BRKT,SUSPENSION-WELDED-RH | 1 | $47.95 | |
| 3 | 0706-731 | BRKT,SUSPENSION-WELDED-LH | 1 | $52.95 | |
| 4 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 6 | 3611-480 | DECAL,TUNNEL R.H. | 1 | $63.95 | |
| 6 | 3611-481 | DECAL,TUNNEL L.H. | 1 | $63.95 | |
| 7 | 0706-671 | WEARSTRIP,TUNNEL | 1 | $41.95 | |
| 8 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 12 | 0616-731 | BUMPER,REAR | 1 | $164.95 | |
| 13 | 3611-009 | DECAL,FASTRACK SYS/WARNING(TOWING) | 1 | $32.95 | |
| 14 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8019-585 | SCREW,MACH-TSPNH 1/4-20 X 1 1/2 GR2 Z&Y | 1 | $0.55 | |
| 19 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 22 | 2604-624 | INSERT,BUMPER-PTD BLK | 1 | $109.95 | |
| 23 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 25 | 2706-548 | HITCH,PIVOT-PTD BLK | 1 | $69.95 | |
| 26 | 0604-497 | GUIDE,TRACK | 1 | $20.95 | |
| 27 | 0623-268 | SCREW,FLAT HEAD-1/4-20 X 1.50 | 1 | $0.35 | |
| 28 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 29 | 0606-698 | FOOTREST,REAR-R.H. | 1 | $33.95 | |
| 29 | 0606-699 | FOOTREST,REAR-L.H. | 1 | $33.95 | |
| 30 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 31 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 32 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
