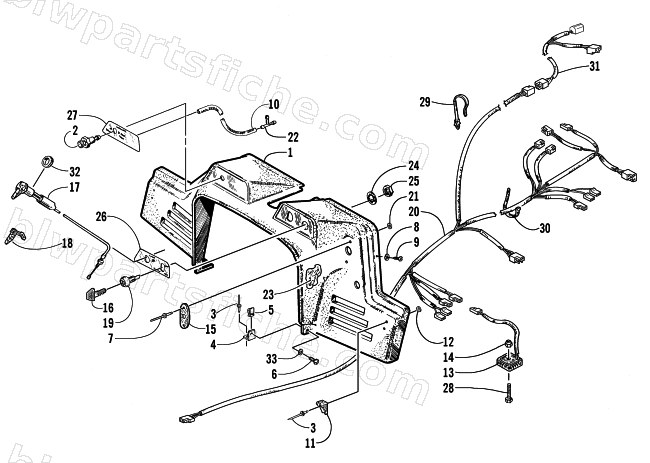

2000 Arctic Cat BEARCAT 440 I — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
2000 BEARCAT 440 I
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-258 | CONSOLE, W/ REV | 1 | $296.95 | |
| 2 | 0670-006 | PRIMER | 1 | $70.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 7 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 8 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 9 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 10 | 0610-012 | HOSE, PRIMER 25' | 1 | $126.95 | |
| 11 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 12 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 13 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 16 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 17 | 0109-722 | CABLE,CHOKE-23'' | 1 | $86.95 | |
| 18 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 19 | 0609-256 | SWITCH,IGNITION-NORM. OPEN | 1 | $71.95 | |
| 20 | 0686-582 | HARNESS, MAIN-99 BC 340 & 440 I | 1 | $212.95 | |
| 21 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 22 | 0670-026 | TEE,VENT LINE-OIL | 1 | $4.95 | |
| 23 | 0617-204 | FOAM,CONSOLE-RH | 1 | $8.95 | |
| 23 | 0617-205 | FOAM,CONSOLE-LH | 1 | $11.95 | |
| 24 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 25 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 26 | 3611-274 | DECAL,CONSOLE-SWITCH R.H. | 1 | $33.95 | |
| 27 | 3611-271 | DECAL,CONSOLE L.H. | 1 | $40.95 | |
| 28 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 29 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 0686-436 | HARNESS,HOOD-HEADLIGHT&SPEEDO | 1 | $68.95 | |
| 32 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 33 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
