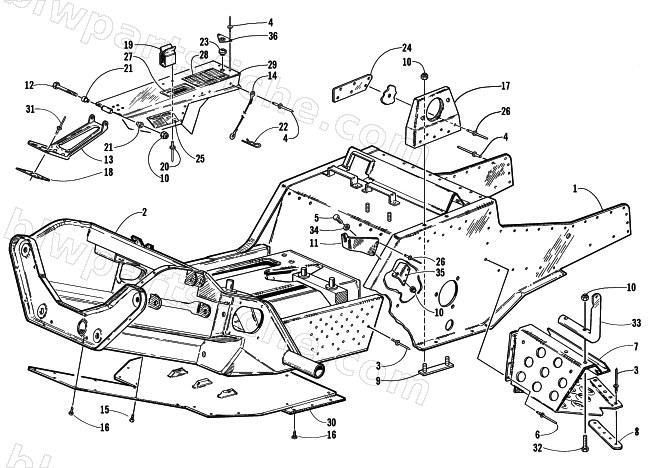

2000 Arctic Cat BEARCAT 440 II — FRONT FRAME, FOOTREST, AND GUARD ASSEMBLIES
2000 BEARCAT 440 II
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-445 | CHASSIS-FRONT END - 00 BRC 440 II | 1 | $775.95 | |
| 2 | 0707-266 | FRONT END-WELD'T | 1 | $1,198.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0706-916 | FOOTREST-RH (PAINTED BLK - 0616-286) | 1 | $165.95 | |
| 7 | 0706-917 | FOOTREST-LH (PAINTED BLK - 0616-287) | 1 | $163.95 | |
| 8 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0707-364 | BRKT,TORQUE-BUMPER-WELD'T | 1 | $42.95 | |
| 12 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 13 | 0616-658 | BRKT,MTG-GUARD | 1 | $21.95 | |
| 14 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-700 | SCREW,SELF TAP-TSTRH #10-12X3/4 TP A Z&Y | 1 | $10.95 | |
| 17 | 0707-065 | SUPPORT,BEARING-WELDT | 1 | $81.95 | |
| 18 | 0616-345 | PLATE,BACKING-CLUTCH SHIELD MNT | 1 | $47.95 | |
| 19 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 20 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 21 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 22 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 23 | 0607-549 | BUSHING, BELT GUARD | 1 | $3.02 | |
| 24 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 25 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 26 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 27 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 28 | 3611-632 | DECAL, JET CHART-00 BRC 440-II | 1 | $14.95 | |
| 29 | 0707-437 | GUARD-ASSY | 1 | $119.95 | |
| 31 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 32 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 33 | 0716-219 | TUBE,BUMPER SUPPORT | 1 | $30.95 | |
| 34 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 36 | 0607-550 | PLATE, BUSHING-BELT GUARD-PTD BLK | 1 | $12.95 |
