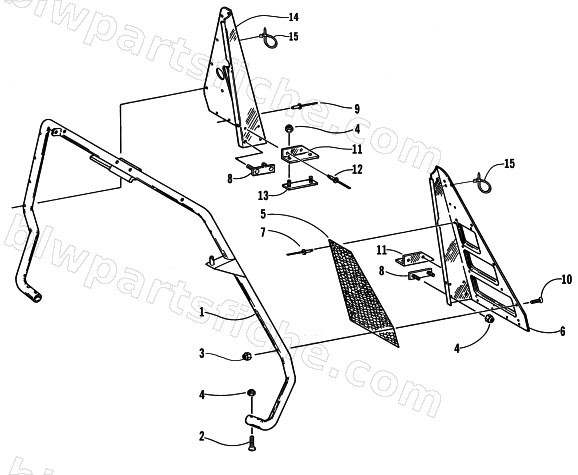

STEERING SUPPORT ASSEMBLY
2000 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-167 | SUPPORT,STEERING WELD'T W/T | 1 | $157.95 | |
| 2 | 0623-060 | SCREW,OVAL HEAD-1/4-20X1-1/2 | 1 | $1.64 | |
| 3 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0616-283 | SCREEN,VENT | 1 | $19.25 | |
| 6 | 0616-641 | PLATE,BACKING-VENT-LH | 1 | $89.95 | |
| 7 | 8061-426 | RIVET,BLIND-LF AA54 BLACK | 1 | $0.95 | |
| 8 | 1705-113 | PLATE, BACKING SIDE-PTD BLK | 1 | $12.35 | |
| 9 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 10 | 0623-227 | SCREW,MACH FH CR 10-24 X 1.25 | 1 | $0.95 | |
| 11 | 0605-120 | BRACE,STEERING SUPPORT-RH | 1 | $16.49 | |
| 11 | 0605-121 | BRACE,STEERING SUPPORT-LH | 1 | $16.95 | |
| 12 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 13 | 1705-114 | PLATE, BACKING TOP-PTD BLK | 1 | $8.95 | |
| 14 | 0616-940 | PLATE,BACKING-R.H. | 1 | $113.95 | |
| 15 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 |
