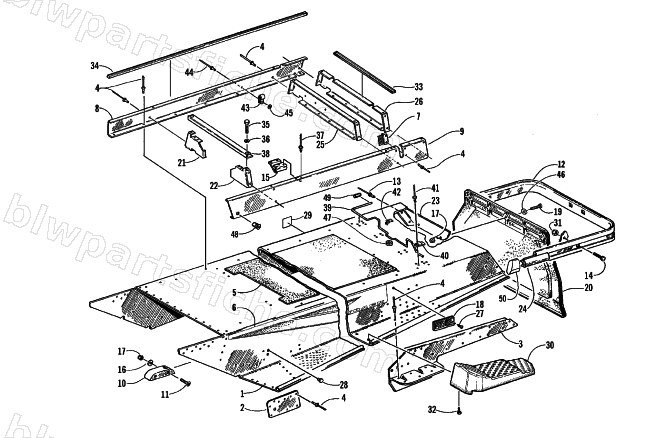

TUNNEL AND REAR BUMPER
2000 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-785 | TUNNEL, '00 BRC 550 W/T - ASSY | 1 | $1,324.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 0716-300 | BRKT,REAR-SUSP-WELD'T-RH | 1 | $119.95 | |
| 3 | 0716-301 | BRKT,REAR-SUSP-WELD'T-LH | 1 | $119.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 0616-869 | PAD,TOOL-BOX | 1 | $34.95 | |
| 6 | 3611-470 | DECAL,TUNNEL R.H. ( 2000 W/T ) | 1 | $63.95 | |
| 6 | 3611-471 | DECAL,TUNNEL L.H. ( 2000 W/T ) | 1 | $63.95 | |
| 7 | 1606-127 | SEAL,SEAT RISER | 1 | $40.95 | |
| 8 | 0616-866 | PLATE,SEAT-RISER-RH | 1 | $134.95 | |
| 9 | 0616-867 | PLATE,SEAT-RISER-LH | 1 | $134.95 | |
| 10 | 0604-497 | GUIDE,TRACK | 1 | $20.95 | |
| 11 | 0623-268 | SCREW,FLAT HEAD-1/4-20 X 1.50 | 1 | $0.35 | |
| 12 | 0616-845 | BUMPER,FORMED-REAR-W/T | 1 | $224.95 | |
| 13 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 14 | 8011-040 | BOLT,CRG 1/4-20X.75 GR1 Z&Y | 1 | $0.12 | |
| 15 | 0623-579 | HINGE,SEATBASE | 1 | $38.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 19 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 | |
| 20 | 3606-740 | SNOWFLAP-BCWT | 1 | $125.95 | |
| 21 | 0616-864 | PLATE,SEAT-RISER-FRONT-RH | 1 | $35.95 | |
| 22 | 0616-865 | PLATE,SEAT-RISER-FRONT-LH | 1 | $38.95 | |
| 23 | 2706-288 | PLATE,END TUNNEL-PTD BLK | 1 | $84.95 | |
| 24 | 1606-509 | INSERT,BUMPER-REAR-BLK-77". | 1 | $73.79 | |
| 25 | 0616-948 | PLATE,RISER-SEAT-CTR | 1 | $65.95 | |
| 26 | 0616-868 | PLATE,SEAT-RISER-REAR | 1 | $74.95 | |
| 27 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 28 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 29 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 30 | 1606-478 | FOOTREST-RH | 1 | $30.95 | |
| 31 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 33 | 0616-952 | SEAL,SEAT BASE | 1 | $17.87 | |
| 34 | 0616-953 | SEAL,SEAT BASE(SIDE) | 1 | $28.95 | |
| 35 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 36 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 37 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 38 | 0616-863 | BRKT,HOLDDOWN-FUELTANK | 1 | $35.95 | |
| 39 | 1606-098 | LEVER, SEATLATCH | 1 | $40.95 | |
| 40 | 0616-945 | BRKT,MTG-SEAT LEVER | 1 | $4.95 | |
| 42 | 0623-610 | SPRING,LEVER-RETURN-R.H. | 1 | $20.63 | |
| 43 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 44 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 45 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 46 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 47 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 48 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 50 | 0616-396 | CAP,BUMPER END RH | 1 | $6.75 | |
| 50 | 0616-397 | CAP,BUMPER END LH | 1 | $6.75 |
