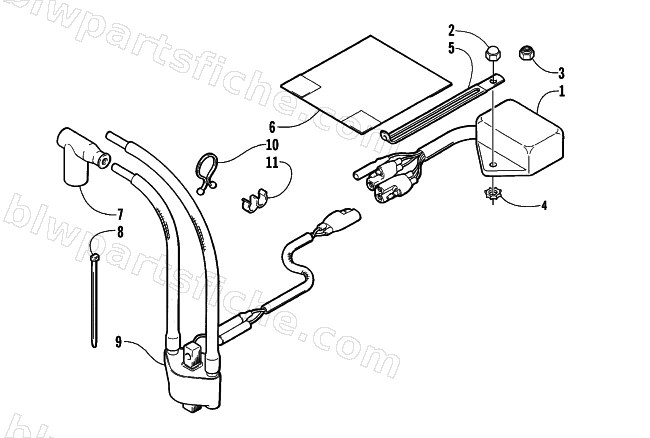

2000 Arctic Cat BEARCAT WIDE TRACK () — ELECTRICAL
2000 BEARCAT WIDE TRACK ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-408 | CDI UNIT | 1 | $612.95 | |
| 3 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 5 | 3002-718 | CLAMP,WIRE | 1 | $21.95 | |
| 6 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 7 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 8 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 9 | 3005-409 | COIL ASSY, IGNITION | 1 | $251.95 | |
| 10 | 3004-685 | CLIP | 1 | $3.95 | |
| 11 | 3005-387 | CLIP | 1 | $4.40 |
