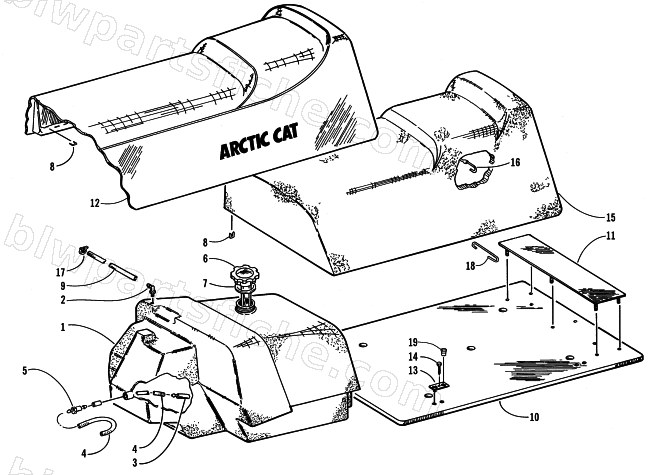

2000 Arctic Cat BEARCAT WIDE TRACK () — GAS TANK AND SEAT ASSEMBLIES
2000 BEARCAT WIDE TRACK ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-786 | SEAT BASE, WIDE PLASTIC-ASSY | 1 | $996.95 | |
| 1 | 0770-190 | TANK, GAS-ASSY BRC W/T SP | 1 | $372.95 | |
| 2 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 6 | 0670-135 | CAP,GAS W/GAUGE | 1 | $88.95 | |
| 7 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 9 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 10 | 1606-724 | BASE,SEAT - PLASTIC | 1 | $127.95 | |
| 11 | 0716-319 | PLATE,BACKING-BACKREST-WELD'T | 1 | $37.95 | |
| 12 | 0716-586 | COVER, SEAT W/DECAL BRC W/T SP | 1 | $450.95 | |
| 13 | 0716-570 | PLATE,BACKING SEAT HINGE ASSY | 1 | $13.73 | |
| 14 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 15 | 0716-606 | FOAM,SEAT W/T | 1 | $315.95 | |
| 16 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 17 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 |
