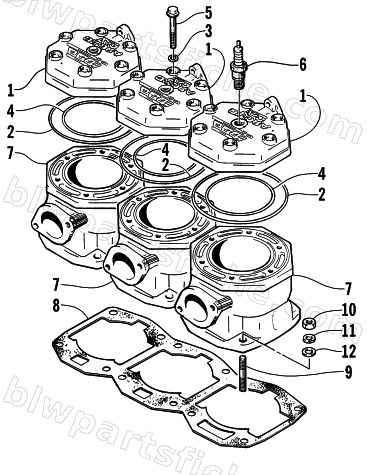

CYLINDER AND HEAD ASSEMBLY
2000 PANTERA 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-223 | HEAD,CYLINDER-1000 LC | 1 | $335.95 | |
| 2 | 3004-081 | O-RING,HEAD-OUTER | 1 | $23.39 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3004-080 | O-RING,HEAD-INNER | 1 | $32.95 | |
| 5 | 3007-238 | BOLT,EGR VALVE | 1 | $4.95 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-222 | CYLINDER, 1000 LC | 1 | $1,282.95 | |
| 8 | 3008-588 | GASKET, CYLINDER | 1 | $66.95 | |
| 9 | 3005-596 | STUD,BOLT | 1 | $17.87 | |
| 10 | 3004-989 | NUT,10MM | 1 | $2.75 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3007-410 | WASHER | 1 | $2.75 |
