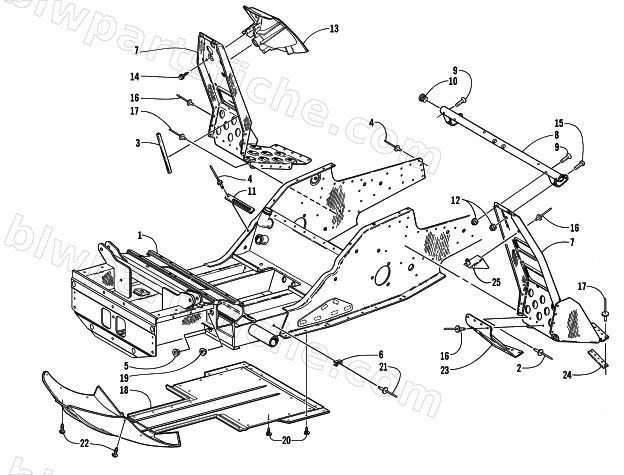

FRONT FRAME AND FOOTREST ASSEMBLY
2000 PANTERA 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-454 | CHASSIS, FRONT END-ASSY | 1 | $1,390.95 | |
| 2 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 3 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 7 | 1706-358 | FOOTREST, RH - PAINTED BLK | 1 | $126.95 | |
| 7 | 1706-361 | FOOTREST, LH (PTD BLK - 2606-167) | 1 | $114.95 | |
| 7 | 1706-370 | FOOTREST, LH BLK (WIDE RATIO CLUTCH) | 1 | $135.95 | |
| 8 | 0705-228 | SUPPORT,STEERING-ASSY | 1 | $90.95 | |
| 9 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 10 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 | |
| 11 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 1706-101 | CUP,RECOIL W/REV. & ALARM HOLES-BLUE | 1 | $38.95 | |
| 14 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 15 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 16 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 17 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 18 | 1606-708 | BELLY PAN - CENTER | 1 | $165.95 | |
| 19 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 21 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 22 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 23 | 1606-542 | PLATE, BACKING-FOOTREST-RH | 1 | $19.25 | |
| 23 | 1606-543 | PLATE, BACKING-FOOTREST-LH | 1 | $19.25 | |
| 24 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 25 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 |
