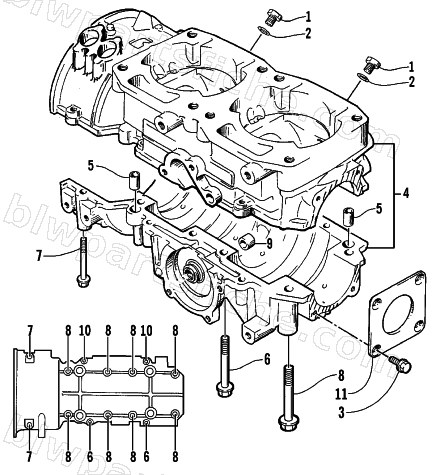

2000 Arctic Cat PANTERA 580 EFI — CRANKCASE ASSEMBLY
2000 PANTERA 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 | |
| 2 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 3 | 3007-392 | BOLT | 1 | $3.95 | |
| 4 | 3005-459 | CRANKCASE ASSY (580 L/C) | 1 | $1,470.95 | |
| 5 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 6 | 3004-442 | BOLT, 6X40 | 1 | $2.95 | |
| 7 | 3004-444 | BOLT, 8X65 | 1 | $5.95 | |
| 8 | 3004-881 | BOLT, 8X75 | 1 | $6.89 | |
| 9 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 10 | 3004-880 | BOLT, 8X50 | 1 | $3.85 | |
| 11 | 3004-775 | PLATE,OIL SEAL 440L/C | 1 | $28.95 |
