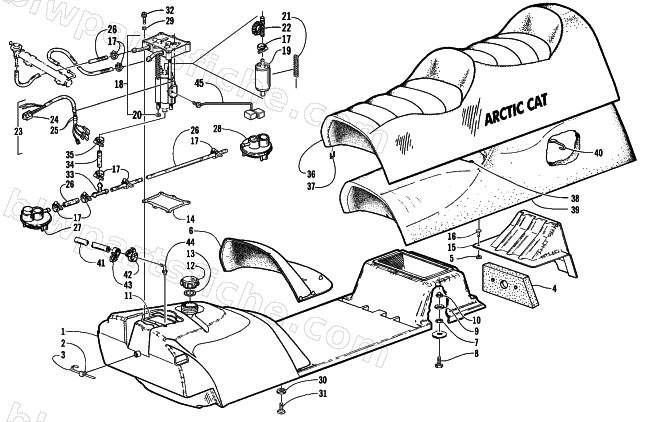

2000 Arctic Cat PANTERA 580 EFI — GAS TANK AND FUEL PUMP ASSEMBLIES
2000 PANTERA 580 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-819 | SEAT, '00 PTA 580-ASSY | 1 | $769.95 | |
| 1 | 0770-445 | TANK, GAS- ASSY- '00 PTA 580 | 1 | $321.95 | |
| 2 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 3 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 4 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 5 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 6 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 7 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 9 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 11 | 0670-409 | RING,RETAINING-EFI FUEL PUMP | 1 | $31.95 | |
| 12 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 13 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 15 | 1606-191 | EXTENSION,TOOLBOX | 1 | $104.95 | |
| 16 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 17 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 18 | 0770-407 | PUMP,FUEL ASSY W/PUMP-PFA-15(99 PTA 580) | 1 | $1,308.95 | |
| 19 | 3005-268 | PUMP ASSY,FUEL(KEFI) | 1 | $721.95 | |
| 20 | 0670-232 | RING,RETAINING-EFI PUMP | 1 | $6.59 | |
| 21 | 0670-316 | SPRING, COMPRESSION - ELEC FUEL PUMP | 1 | $5.95 | |
| 22 | 0670-315 | HOSE, LOOPED FUEL PUMP | 1 | $63.95 | |
| 23 | 0670-984 | HARNESS,ASSY ELEC FUEL PUMP W/GA | 1 | $212.95 | |
| 24 | 0670-380 | HOUSING, CONNECTOR | 1 | $5.95 | |
| 25 | 0670-381 | O-RING | 1 | $14.95 | |
| 26 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 27 | 0770-731 | KIT,FUEL PICKUP | 1 | $185.95 | |
| 28 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 29 | 0623-371 | WASHER,NYLON(ARDEN LWNY-016-9) | 1 | $0.15 | |
| 30 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 31 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 32 | 0623-521 | SCREW,MACH-HWH-10-24X1.25-Z&Y | 1 | $5.95 | |
| 33 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 34 | 0670-559 | HOSE,FUEL PUMP-FORMED (EFI) | 1 | $38.95 | |
| 35 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 36 | 1706-083 | COVER, SEAT W/DECAL -'00 PTA 580/1000 | 1 | $614.95 | |
| 37 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 38 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 39 | 0716-991 | FOAM,SEAT-2UP(77-82IDL),44@8.0 | 1 | $268.95 | |
| 41 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 41 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 42 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 43 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 44 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 45 | 1670-082 | ARM, FLOAT-ASSY-FUEL PUMP | 1 | $33.95 |
