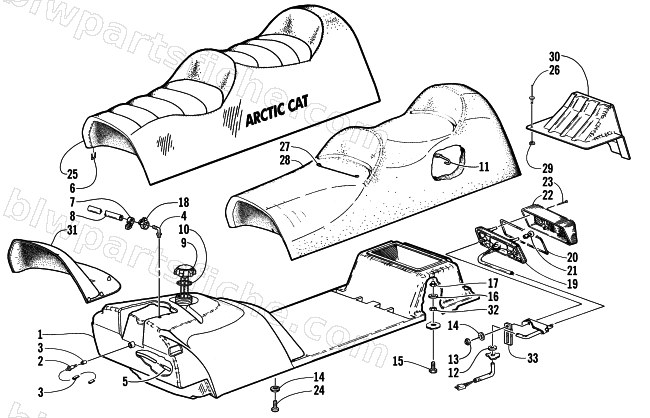

GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2000 PANTHER 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-862 | SEAT, ASSY,00 PAN 340/440 | 1 | $731.95 | |
| 1 | 0770-654 | TANK,SP ASSY-04 PAN 570 | 1 | $501.95 | |
| 2 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 8 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 0670-658 | CAP,GAS-W/GAUGE | 1 | $45.95 | |
| 10 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 11 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 12 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 18 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 19 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 20 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 23 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 24 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 25 | 1706-080 | COVER, SEAT-W/DECAL-00 PAN 340/440/55 | 1 | $554.95 | |
| 26 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 28 | 0716-991 | FOAM,SEAT-2UP(77-82IDL),44@8.0 | 1 | $268.95 | |
| 29 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 30 | 1606-191 | EXTENSION,TOOLBOX | 1 | $104.95 | |
| 31 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 32 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 33 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
