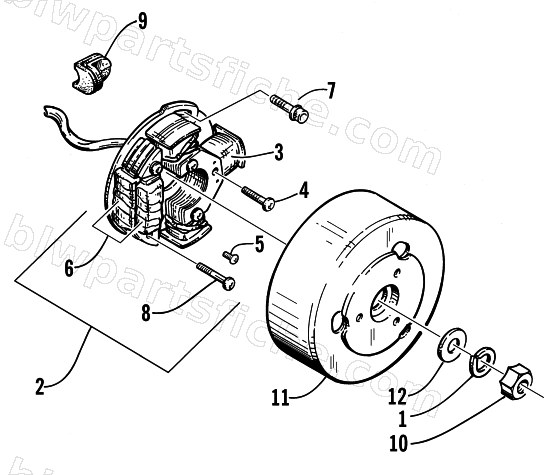

MAGNETO
2000 PANTHER 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 2 | 3005-346 | STATOR ASSY, MAGNETO | 1 | $589.95 | |
| 3 | 3003-013 | COIL ASSEMBLY, LIGHTING | 1 | $148.95 | |
| 4 | 3008-162 | SCREW,M5X30 | 1 | $3.09 | |
| 5 | 3004-545 | SCREW,M6X4 | 1 | $1.95 | |
| 6 | 3005-376 | COIL, PRIMARY | 1 | $277.95 | |
| 7 | 3007-426 | BOLT | 1 | $3.16 | |
| 8 | 3004-634 | SCREW,M5X16 | 1 | $3.95 | |
| 9 | 3005-918 | GROMMET, MAGNETO LEAD WIRE | 1 | $5.92 | |
| 10 | 3007-556 | NUT | 1 | $3.95 | |
| 11 | 3005-347 | FLYWHEEL | 1 | $939.95 | |
| 12 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 |
