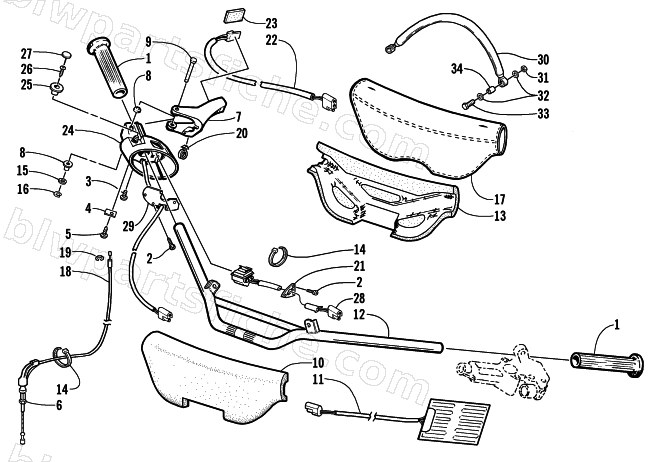

2000 Arctic Cat POWDER SPECIAL 600 EFI LE () — HANDLEBAR AND CONTROLS
2000 POWDER SPECIAL 600 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 2 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 3 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 5 | 0609-321 | SCREW, SELF-TAP-PH-3X8 | 1 | $2.95 | |
| 6 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 7 | 0609-368 | LEVER, TH-35MM W/O IDLE SWITCH | 1 | $31.95 | |
| 8 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 9 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 10 | 0605-416 | PAD, MTN HANDLEBAR - FNT - W/HOLES | 1 | $71.95 | |
| 11 | 0609-375 | ELEMENT,HANDWARMER-HI/LOW(-553) | 1 | $92.95 | |
| 12 | 0705-292 | HANDLEBAR-WELD'T-1020 | 1 | $63.95 | |
| 13 | 0605-417 | PAD, MTN HANDLEBAR - REAR - W/HOLES | 1 | $71.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 18 | 0687-120 | CABLE,THROTTLE-EFI W/O OIL | 1 | $66.95 | |
| 19 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 20 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 21 | 0609-378 | PLATE, SWITCH-H/W&T/W RETAINER | 1 | $11.95 | |
| 22 | 0609-373 | ELEMENT, THUMBWARMER-HI/LOW | 1 | $60.95 | |
| 23 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 24 | 0609-390 | CONTROL,TH-NO 3W W/ HI/LO | 1 | $165.95 | |
| 25 | 0609-282 | KNOB,EMER STOP SW-N.O. | 1 | $15.11 | |
| 26 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 27 | 0609-283 | DECAL,MARK PLATE-N.O. | 1 | $13.95 | |
| 28 | 0609-382 | SWITCH ASSY,HI/LO TW - TH (RH) | 1 | $71.95 | |
| 29 | 0609-316 | COVER, SWITCH-THROTTLE | 1 | $12.95 | |
| 30 | 0605-448 | STRAP, MTN FORMED - W/NYLON - BLK - PS | 1 | $127.95 | |
| 31 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 32 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 33 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 34 | 0623-811 | SPACER, 3/8 ID-1/2 OD | 1 | $4.82 |
